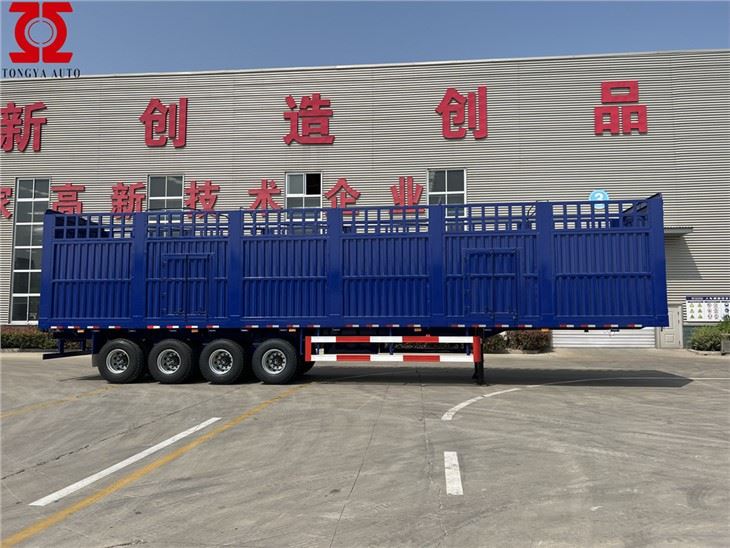

4axles Stake Semi Trailer

1. 4 axles stake semi trailer Finite Element analysis used in vehicle to promote product performance.
2. 4 axles stake semi trailer Electrophoresis Painting, resistance, painting effect can reach above 10 years.
3. High Strength full thickness Steel,titanium content of 0.98‰, which ensure Beam and frame’s Toughness and strength.
4. 42 tough ribs design, Ensure the safety and carrying capacity of trailer.

Send Inquiry

Product Introduction

Description

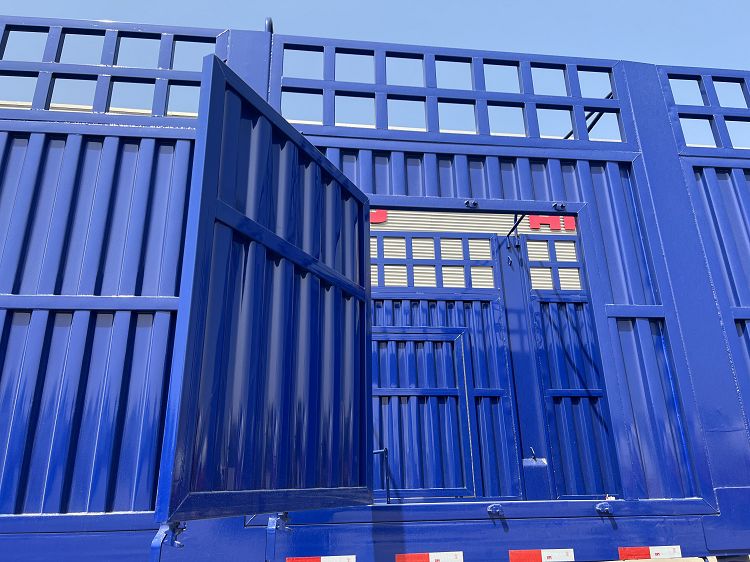

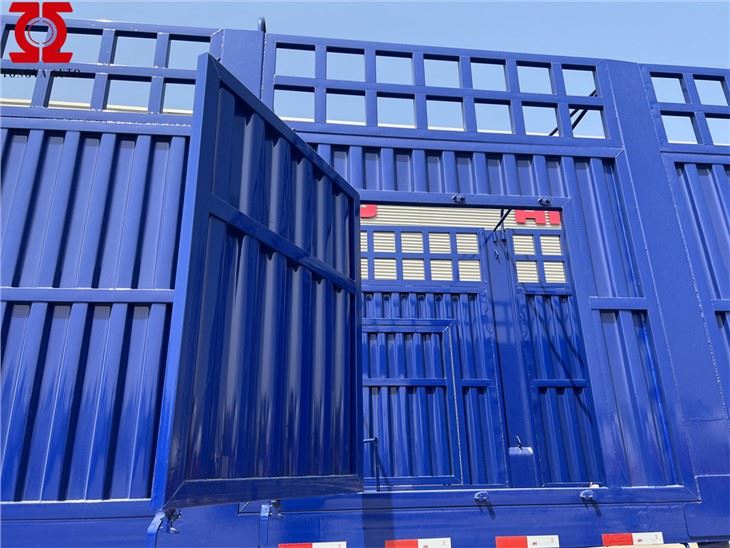

4axles Stake Semi Trailer can carry up to 60000 kg of goods, greatly shorten the transportation time and improve the transportation efficiency. There are towering baffles on all sides of the container to ensure that the goods will not fall during transportation. Of course, these baffles can be lowered to facilitate unloading. The outer surface is painted to obtain excellent waterproof and corrosion resistance. In addition, these paints are environmentally friendly materials, so they will not have adverse effects on the goods. If you have any questions, you can consult us.

Features
4axles Stake Semi Trailer is a very suitable trailer for long-distance transportation. The rear of the product has a large cargo box for loading goods. The baffles on all sides are made of high-quality materials, so they have good deformation resistance. There are four tires on each side of the trailer to provide strong support, so that the trailer can drive stably. Due to the medium weight of the truck, it is much more difficult to stop than ordinary cars, so we optimize the braking system of the product to shorten the braking distance.

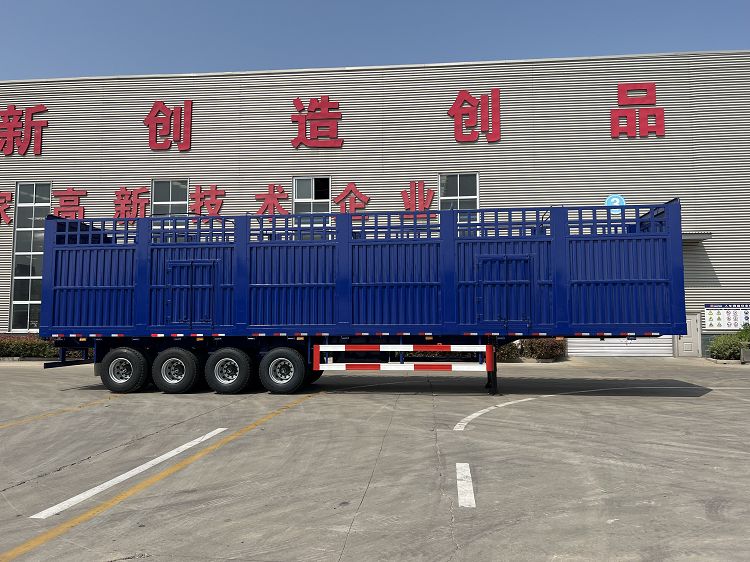

1(001)

Trailer Model	4 axles stake semi trailer
Overall Dimension	1350025004000mm
Overall Dimension	1350025004000mm
Tare Weight(KG)	8700
Loading Weight( KG)	60000
Wheel Base(mm)	6980mm+1310mm+1310mm+1310mm
The material of Main beam	Q345B carbon steel,The height of the beam is 500 mm, upper plate is14mm,down plate is 16mm, middle plate is 8 mm.
Side beam	Q235 16# channel steel
Axle Brand	FUWA brand
Axle Number	4axles
Suspension system	Mechanical Suspension
Leaf spring	90(W)mm13(Thick)mm10 Layer

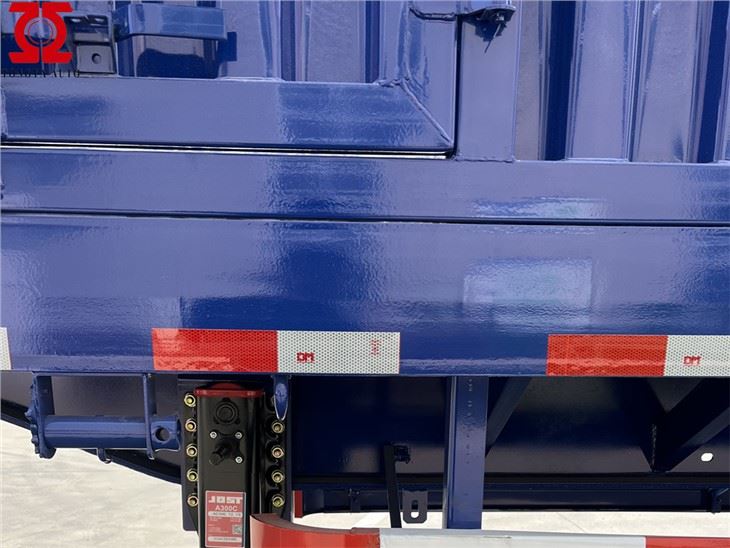

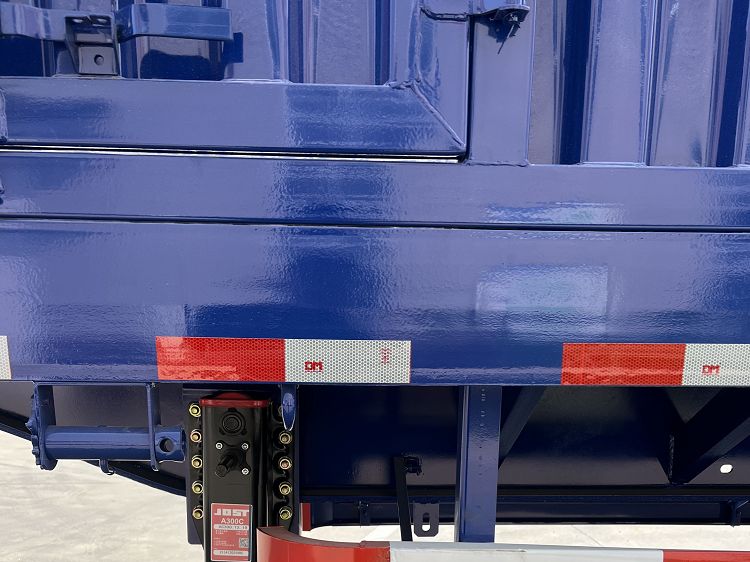

Landing Gear	JOST brand,double speeds
Tire Type and quantity	12R22.5
Wheel Rim	9.00-22.5
Traction Pin	2” or 3.5”
Spare Wheel Bracket	2 pieces
Tool Box	1 Standard
Brake system	Dual Line braking system
Brake air chamber	Six double chamber
Electrical system	1. Voltage: 24v 2. Receptacle: 7 ways (7 wire harness)
	Tail lamp with turn signal, brake light & reflector, side lamp etc.
	One set 6-core standard Cable.
Painting	Color as customer’s requirement
Packing	Complete Chassis sand blasting to clean rust, 1 coat of anti-rust prime,2 coats of final paint
Delivery way	Transfer to Qingdao/Tianjin Port, and carry by ro-ro ship or bulk cargo ship, the freight cost depends on the volume.
