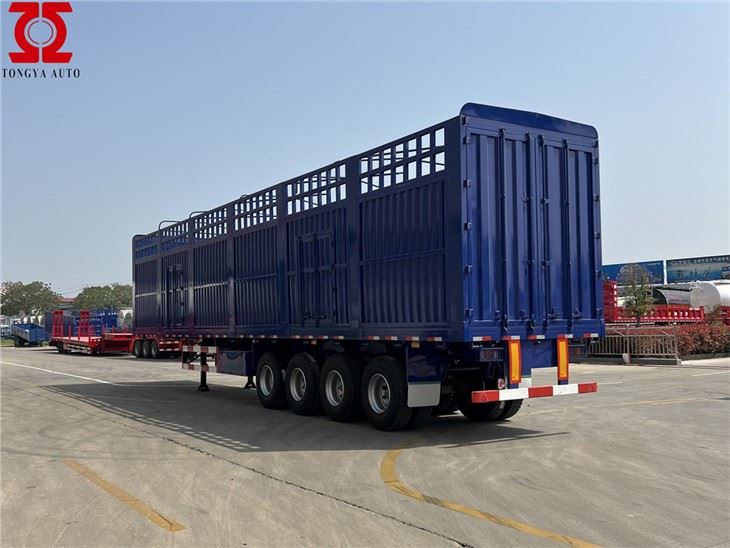

Fence Semi Trailer

1,The fence semi trailer use powder spraying technology to make the vehicle cleaner and tidy.
2,Our fence semi trailer trucks are professionally designed for Africa, Southeast Asia and other markets to meet the different requirements of customers.
3,Our factory has more than 30 years of experience in manufacturing fence semi trailer
4,Our fence semi trailer have reliable performance and large carrying capacity, which can meet the different needs of customers.

Send Inquiry

Product Introduction

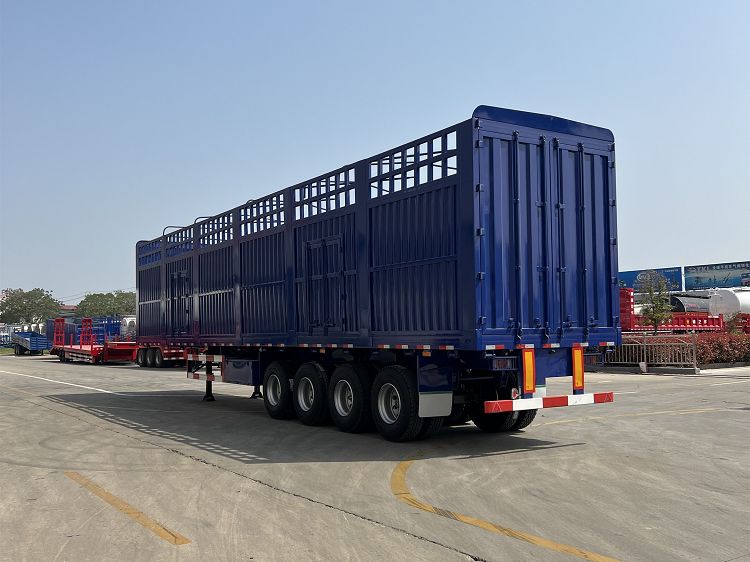

1(001)

Trailer Model	fence semi trailer
Overall dimension	12500 2500 4000mm((According to customer demand))
Tare Weight	8T
Loading Weight	45T
Axle	3axles, FUWA brand axle
Wheelbase(mm)	6700+1310+1310
Suspension system	Mechanical or air suspension (American or German)
Steel Spring	10 pieces per axle
Tire Type	12.00R22.5
Rim	9.00*22.5
Twist Locks	12 units (lifting type or Twist Screw Type) Optional locks for loading containers
Traction Pin
Spare Wheel Bracket	2 sets(Patent type)
Tool Box	2 sets(waterproof type)
Landing Leg	JOST, FUWA or CHINA brand 28T
Brake system	WABCO RE 6 relay valve; T30/30+T30 Spring brake chamber(TAIYUE brand);
Brake system	One piece of 45L air tanks
Brake air chamber	Six double chamber
Electrical system	1. Voltage: 24v 2. Receptacle: 7 ways (7 wire harness)
	Tail lamp with turn signal, brake light & reflector,side lamp etc.
	One set 6-core standard Cable.
Painting	Sandblasting, rust prevention, two primer, two finish
Shipping Terms	By bulk cargo carrier, RORO or 40HQ container.

The fence semi trailer is installed with fences on the working platform. With wide usage, it’s basically used for medium and long-distance transportation of medium and heavy goods as well as bulk cargo. Our company can also install additional container locks or detachable columns according to customers’ special requirements, so it can be used for container transportation or timber transportation. With strong applicability, it is the first choice for medium and long distance transportation.

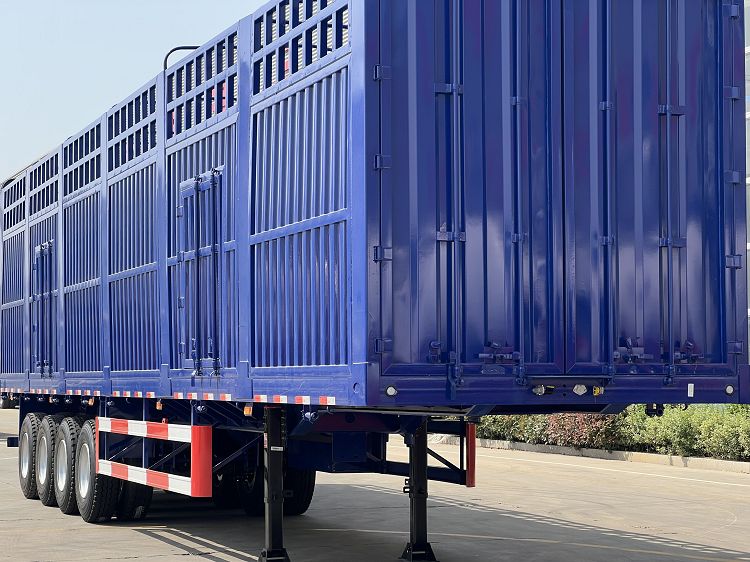

2(001)
