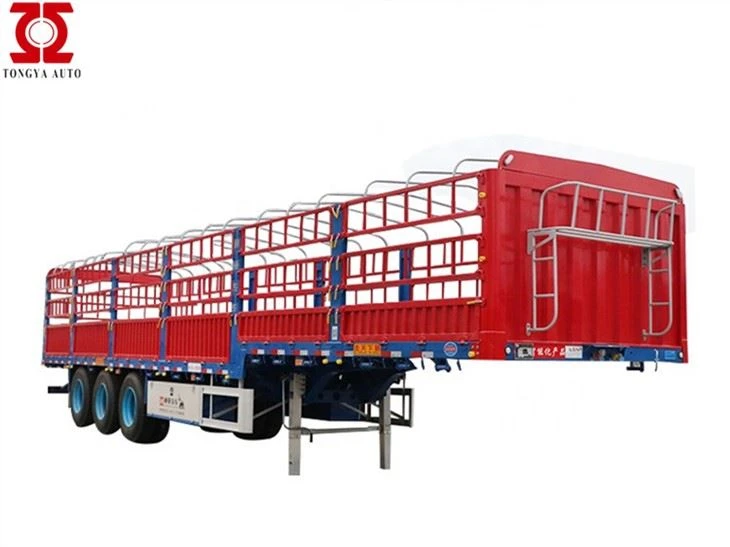

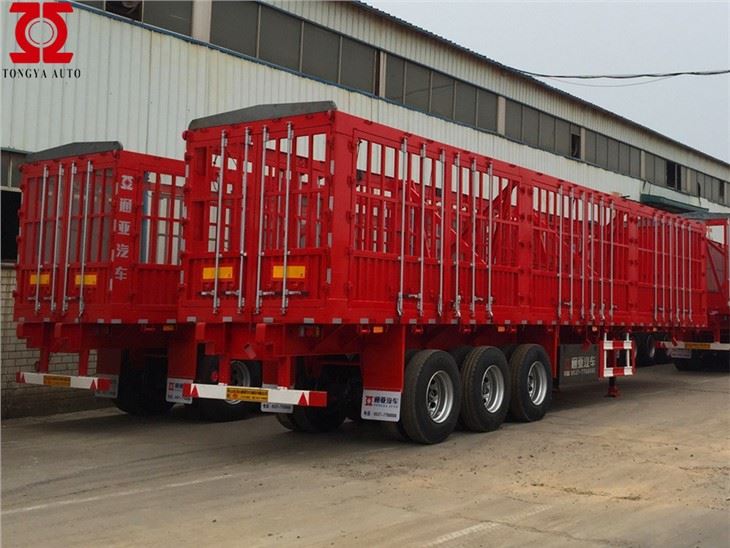

Storage Semi Trailer

1,The latest designs used in our storage semi trailer can be customized according to customer requirements
2,Storage semi trailer for More Economical and more Efficiency
3,We look at all distributor and driver's every feeling.the storage semi trailer to solve their transportation problem and optimize our services in further.

Send Inquiry

Product Introduction

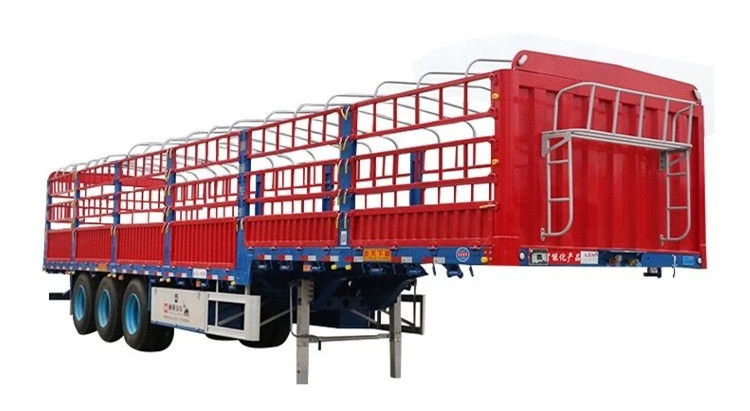

1(001)

Main Configuration
Weight (KG)	Tare Weight		7000
	Load Weight		40000
	Total Weight		47000
Dimensions (LxWxH)	Outline Dimensions		13000x2500x2600 mm
	Box Dimensions		12850x2340x600 mm
Technical Parameter
Main Frame
Main Beam Material	Q345B steel	Main Beam Height		500mm

Upper Plate	14mm	Lower Plate		16mm
Web Plate	8mm	Platform		3mm diamond plate
Side Beam Material	16# channel steel	Side Beam Height		200mm
Running Gear
Axle	3*13Ton Fuwa axle	Suspension		Leaf spring suspension

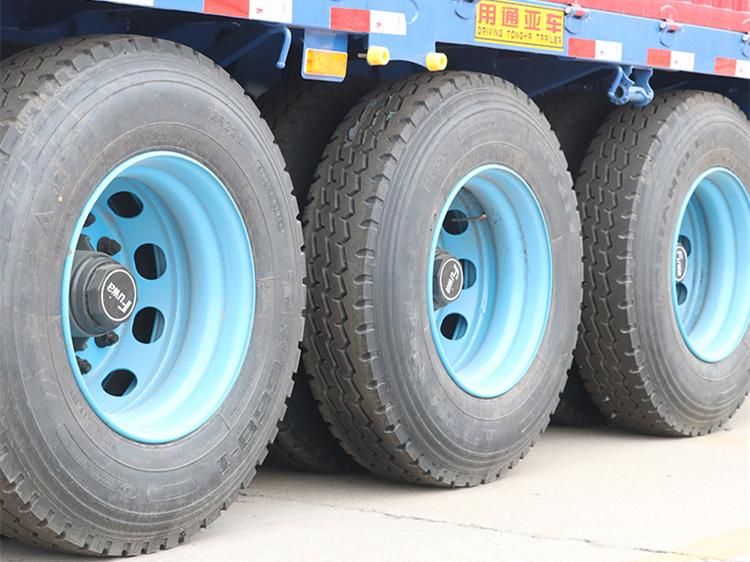

Tyre	12*1100R20 or 12R22.5	Rim		12*8.0-20 or 8.5-22.5

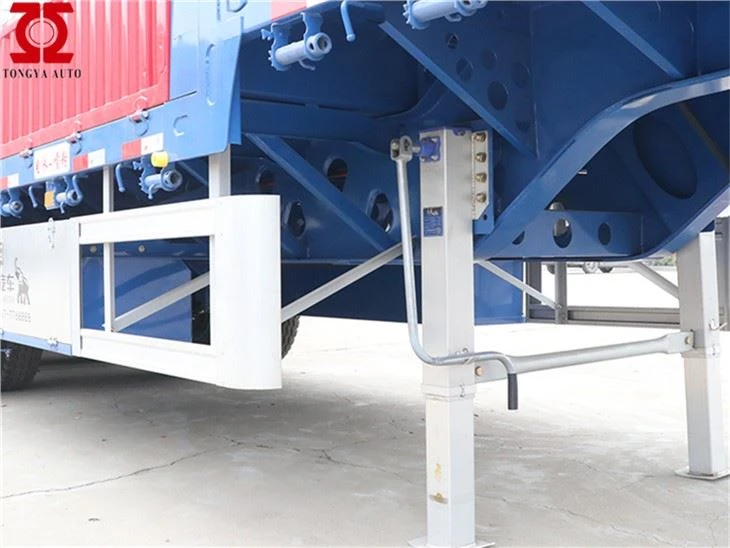

Landing Gear	JOST brand	King Pin		2" or 3.5" bolt-in or welded king pin
Brake System
Type	Pneumatic brake	Brake Chamber		Six double chambers
Relay Valve	WABCO relay valve	ABS System		Optional
Electrical System
Lamps	A full set of LED lights	Voltage		24V
Receptacle	7 ways
Accessories
Tool Box	Equipped one set with basic tools	Spare Wheel Carrier		One or two
Side Guard	2 units of side guards	Twist Lock		12 sets of telescoping
				twist locks is optional

The storage semi trailer has various features Such as light tare weight, heavy loading weight and rational Vehicle Master light duty semitrailer adapts to foreign and domestic design concepts, uses W-shape through-going beam, reduces whole mass greatly by using FEA (finite element analysis) under the precondition of ensuring structural strength. shows unique operating advantage better and is unique in reducing tire wearing aspect while reducing oil consumption.

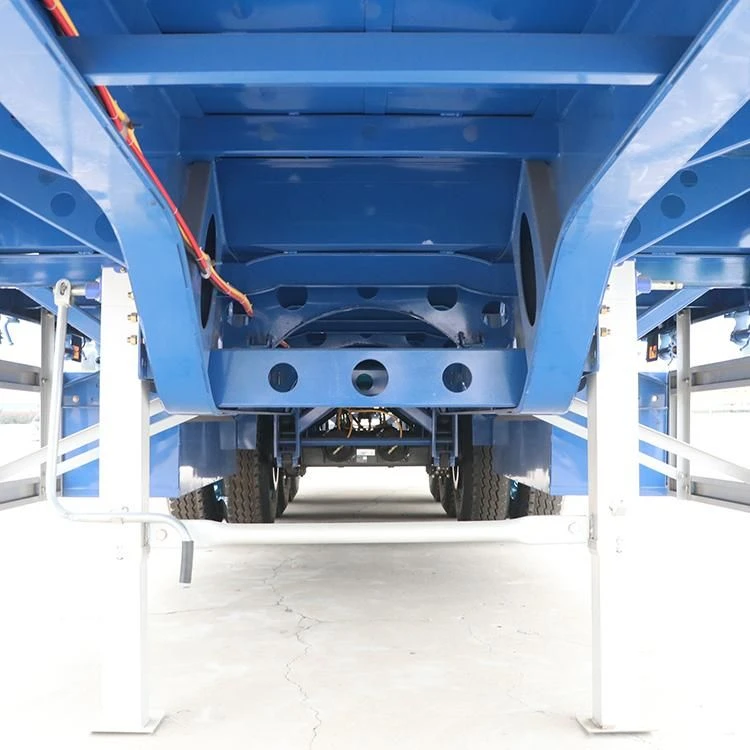

Main Beam

3 axles stake semi trailer with Q345, high strength carbon steel from largest steel company in China

Welding

3 axles stake semi trailer with Submerged Act Welding, full automatic technology
