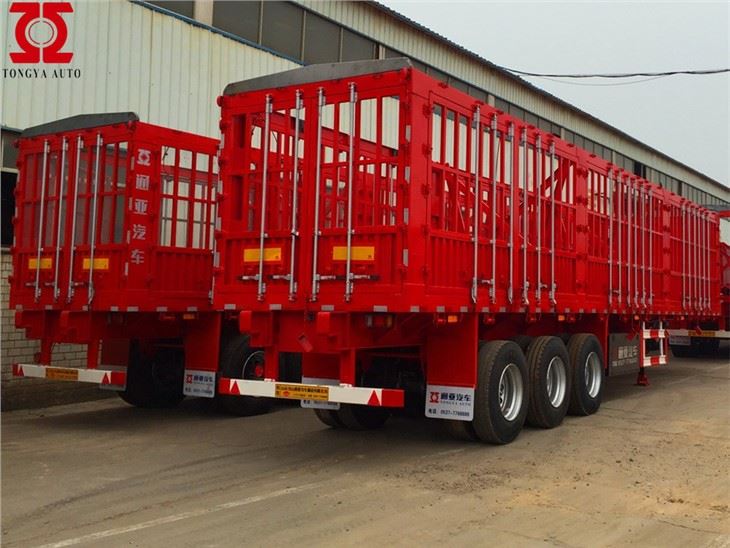

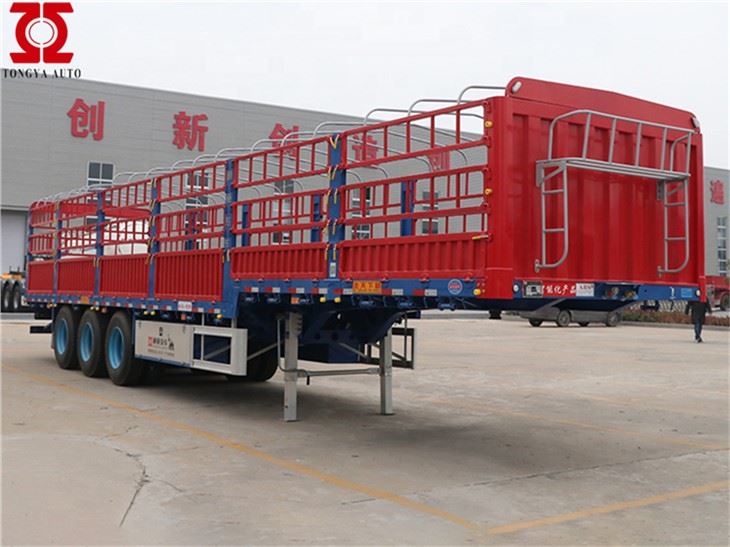

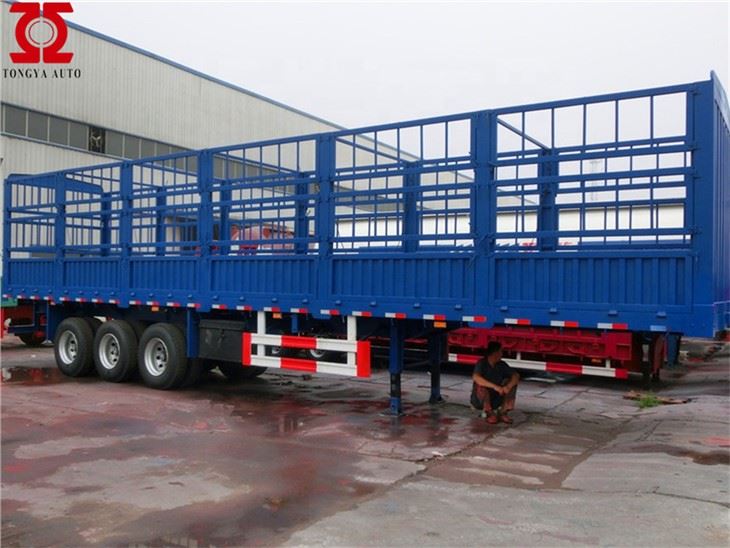

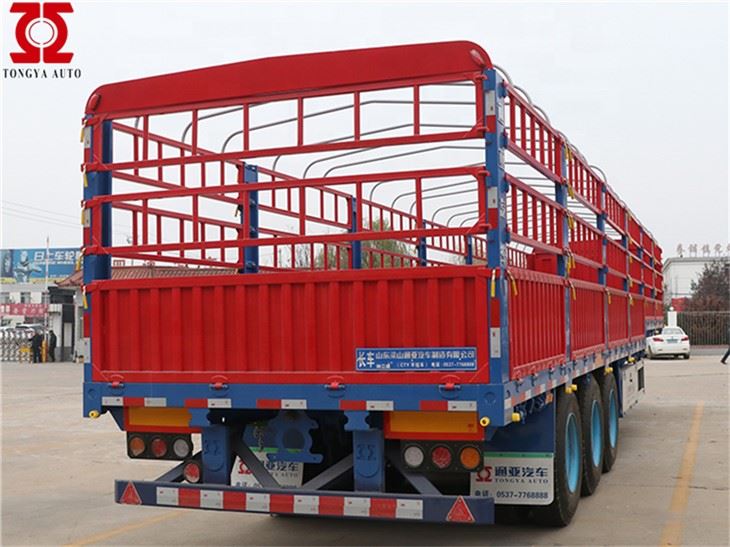

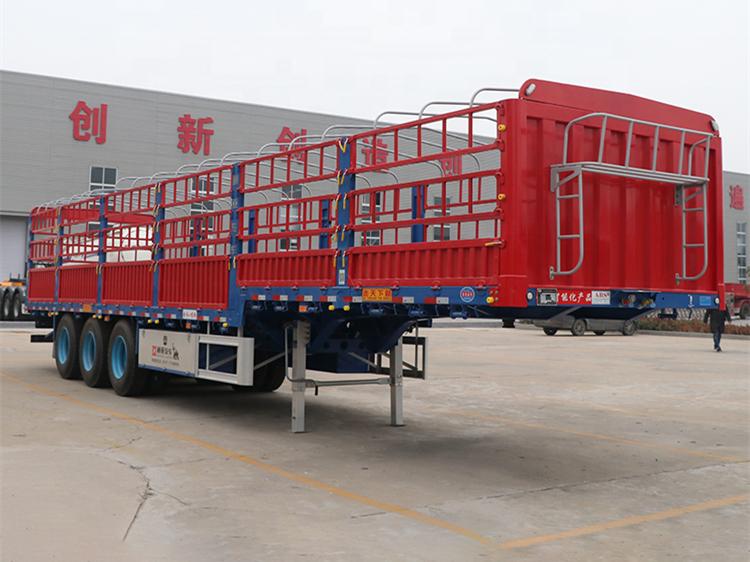

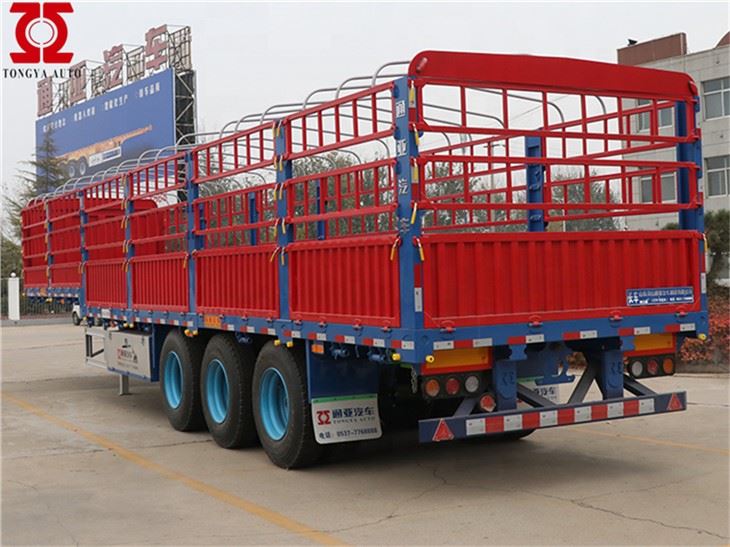

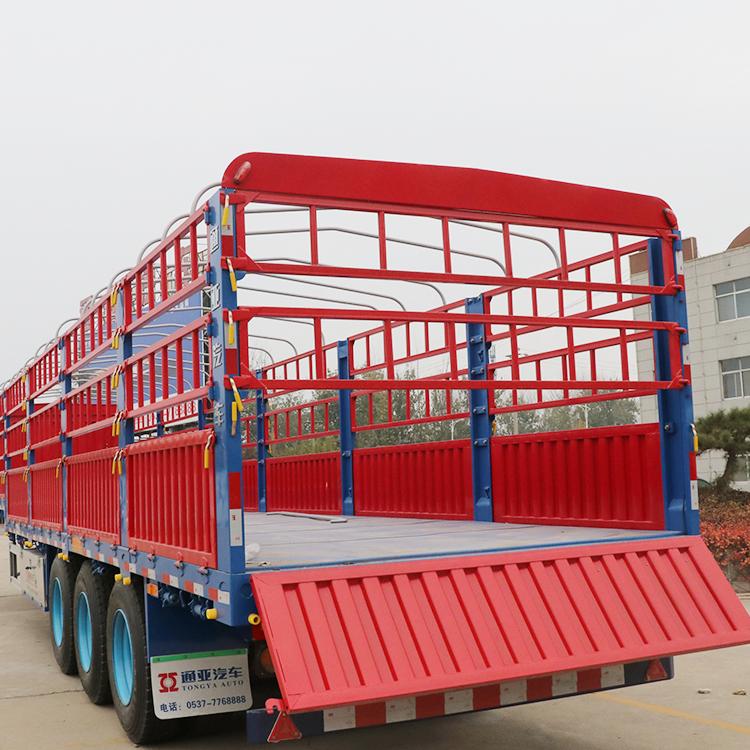

50tons Stake Semi Trailer
1. Highly robust structure steel with tensile and high load capacity, 50 ton loading capacity.
2. To make sure the service life of the fence semi trailer, all the spare parts we adopt are the World Famous brand.
3. Heavy duty type mechanical spring suspension for high loads requirements needs.
4. High Quality side wall, make sure the stability and safety of the loads.
Product Introduction
Products Description
50tons Stake Semi Trailer is suitable for medium and long distance transportation of medium and heavy goods and bulk goods. We use high-strength steel to make this product, which brings excellent mechanical properties. The product has good corrosion resistance, so there is no need to worry that the leakage of some weak corrosive substances will affect the integrity of the semi-trailer. Excellent impact resistance to ensure that the goods are not subject to external impact. The product has very good load-bearing performance, and there are fence boards around it.
Product Features
50tons Stake Semi Trailer has strong bearing capacity and can transport large quantities of goods at one time. The product has high safety factor, reasonable design, durability and advanced technology. There are towering baffles on all sides of the container to ensure that the goods will not fall during transportation. The product is made of high-strength carbon steel, so it has good impact resistance, corrosion resistance and load-bearing performance. If you have any questions, you can consult us.
|
Tare Weight |
7T |
|
Dimension |
8500mm*2490mm*2900mm (Size can be choose freely) |
|
Loading Capacity (T) |
50 T |
|
Axle |
13 T, FUWA Brand |
|
Rim |
9.00-22.5 8.5-20 |
|
Tire |
12.00R22.5 |
|
Suspension |
Mechanical suspension (Germany Type or America Type) |
|
Or Air suspension (China brand or BPW brand ) |
|
|
Spring leaf |
90(W)mm*13(Thickness)mm*10 Layer or 100mm*12mm*12 |
|
King pin |
JOST brand 2.0 or 3.5inch bolts type or Welding type |
|
Support leg |
JOST brand |
|
Main beam |
Height: 500mm, upper plate is 14mm, middle plate is 8mm, |
|
down plate is 16mm ; Material is Q345B Steel . |
|
|
Side beam |
16mm or 18mm channel steel ( Material is Q235steel ). |
|
Side Wall |
600mm-1500mm ,or can be do box type ,for choose |
|
Brake chamber |
WABCO RE 6 relay valve; T30/30+T30 Spring brake chamber(TKL brand); Two pieces of 45L air tanks |
|
ABS |
Optional |
|
Twist Locks |
Four ,Eight or Twelve pieces (Lifting type or Twist Screw Type) ,optional |
|
Valve |
WABCO valve (especial for exporting market) |
|
Light |
LED light (especial for exporting market) |
|
Voltage |
24V |
|
Receptacle |
7 ways (7 wire harness) |
|
Tool box |
One piece, 1m×0.5m×0.5m (Size can be choose freely)(equipped with 1 unit Tire spanner,1 unit gudgeon sleeve and 1 unit cranking |
|
Painting |
Complete Chassis sand blasting to clean rust, 1 coat of anticorrosive prime, 2 coats of final paint |
|
Shipping Terms: |
By bulk cargo carrier, RORO or 40HQ container. |

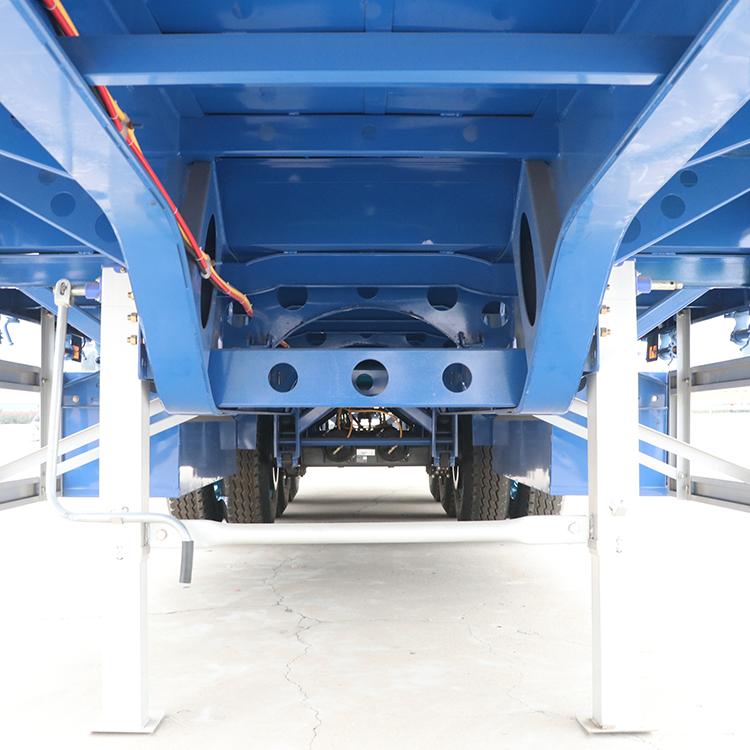

Main Beam
3 axles stake semi trailer with Q345, high strength carbon steel from largest steel company in China
Welding
3 axles stake semi trailer with Submerged Act Welding, full automatic technology

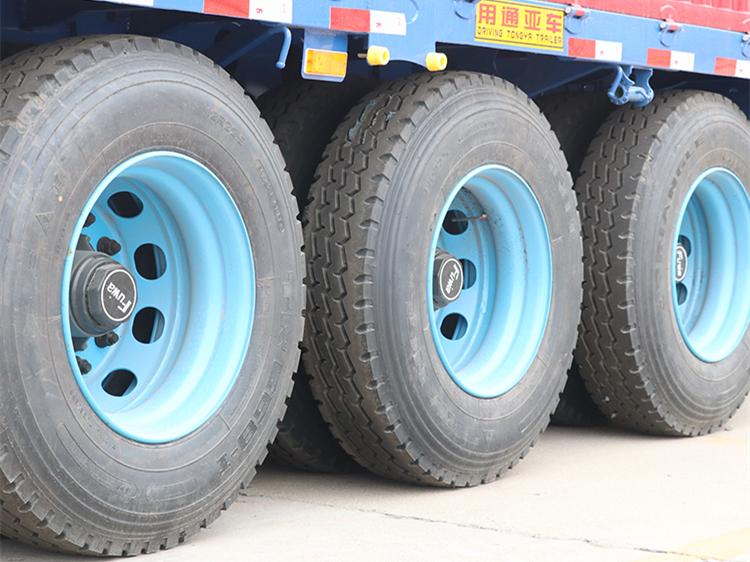

Axle
3 axles stake semi trailer with Famous brand in China, strong out-sourcing
Painting
Sandblasting, prime coating, surface painting,custom color, wax polishing
