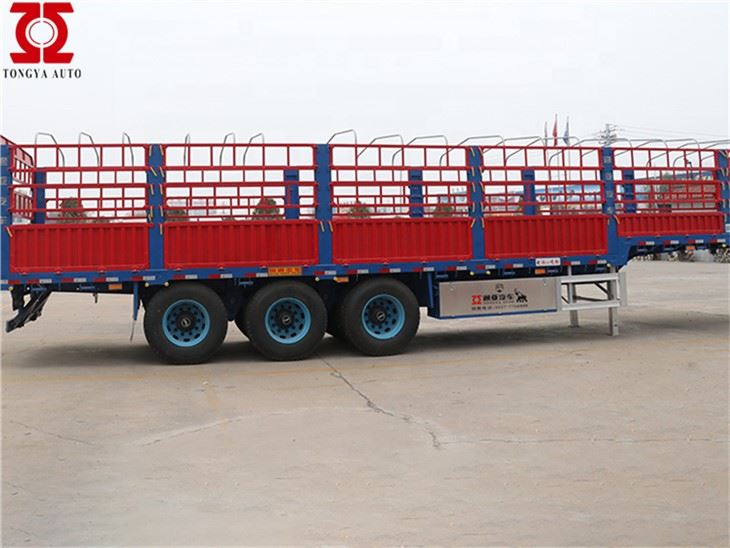

40ft Fence Semi Trailer

1,The beams of our 40ft fence semi trailer are welded by robots, and the precision is strictly controlled
2,Our company has dozens of experienced technicians to ensure the stability of 40ft fence semi trailer quality
3,Our 40ft fence semi trailer are designed for Africa and Southeast Asia markets.
4,Every detail of our 40ft fence semi trailer shows our careful and quality pursuit

Send Inquiry

Product Introduction

Description

This 40ft Fence Semi Trailer is popular with customers because of its strong load capacity and good durability. W-type through beam ensures the structural strength of the product. Good braking system greatly improves driving safety. This product can transport large quantities of goods, thus shortening the transportation time. Good steel endows the product with excellent impact resistance, so the product can withstand certain external impact, thus increasing safety. The tires are large and wide to provide better support.

Features
This 40ft Fence Semi Trailer is the first choice for medium and long distance transportation. First of all, the tires of this car are made of high-quality rubber, so it has good durability, and the wear rate is lower than that of ordinary tires. Secondly, the excellent braking system makes the safety performance of the vehicle very high. Finally, the excellent load capacity enables the product to transport large quantities of goods at one time, thus improving the transport efficiency.

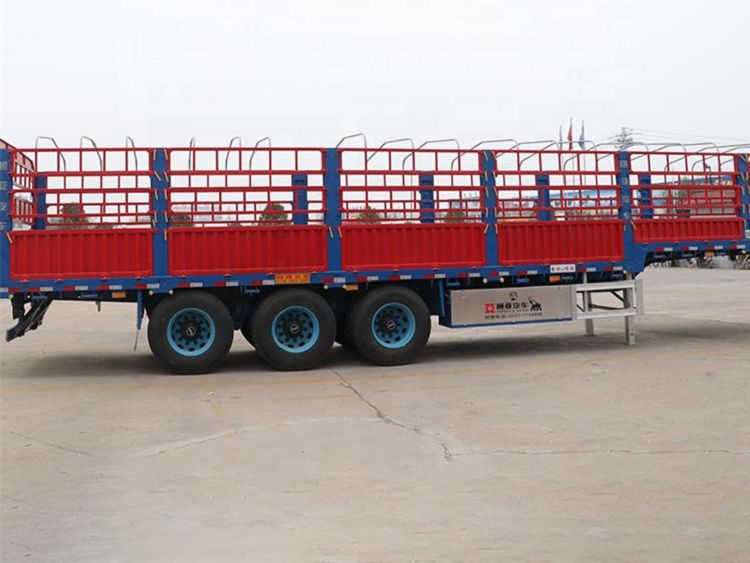

1(001)

Tare Weight	About 8T
Dimension	13000mm2490mm2860mm (Outer side)
Loading Capacity (T)	40 T
Axle	13 T FUWA Brand
Rim	9.00-22.5

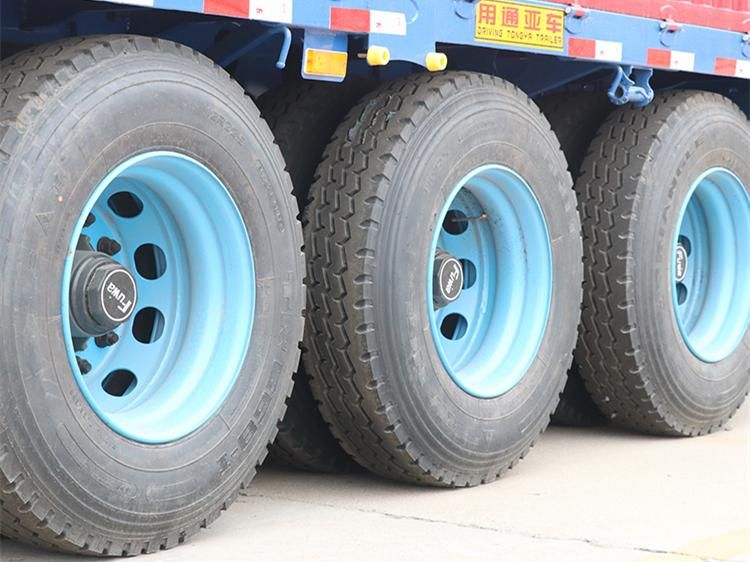

Tire	12.00R22.5
Suspension	Mechanical suspension (Germany Type or America Type)
Spring leaf	90(W)mm13(Thickness)mm10 Layer
King pin	JOST brand 2.0 or 3.5inch bolts type or Welding type
Support leg	JOST brand

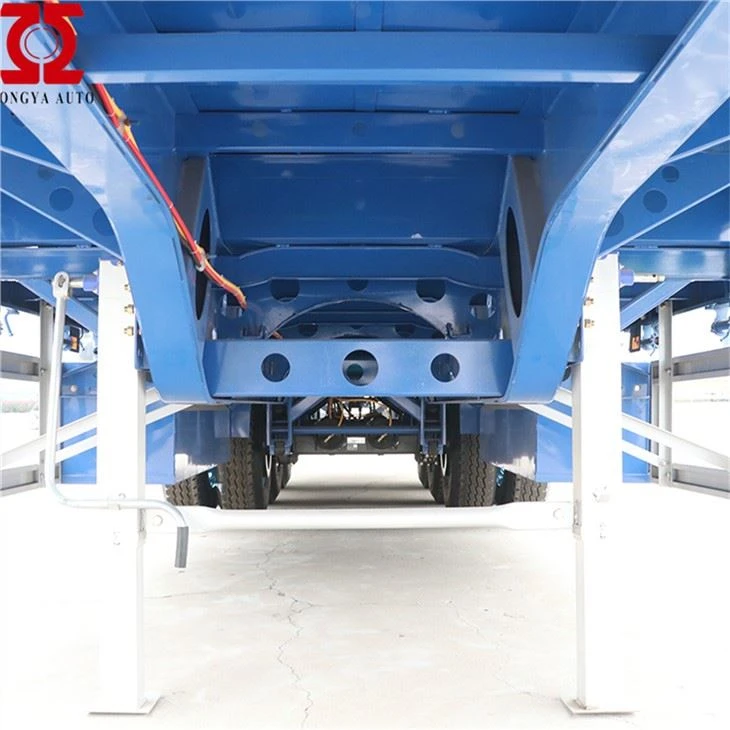

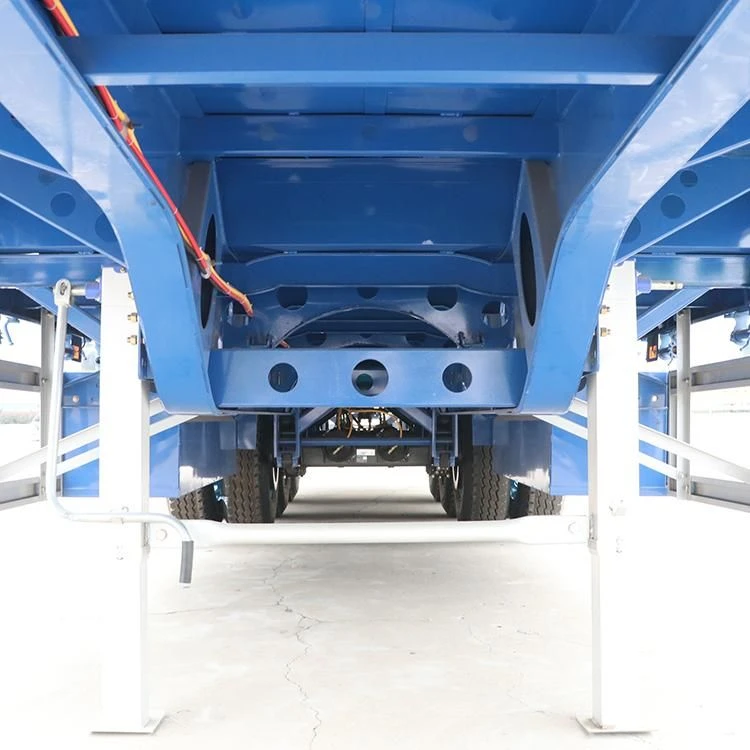

Main beam	Height: 500mm, upper plate is 14mm, middle plate is 8mm, Down plate is 16mm; Material is Q345B Steel.
Side beam	16mm or 18mm channel steel (Material is Q235steel).

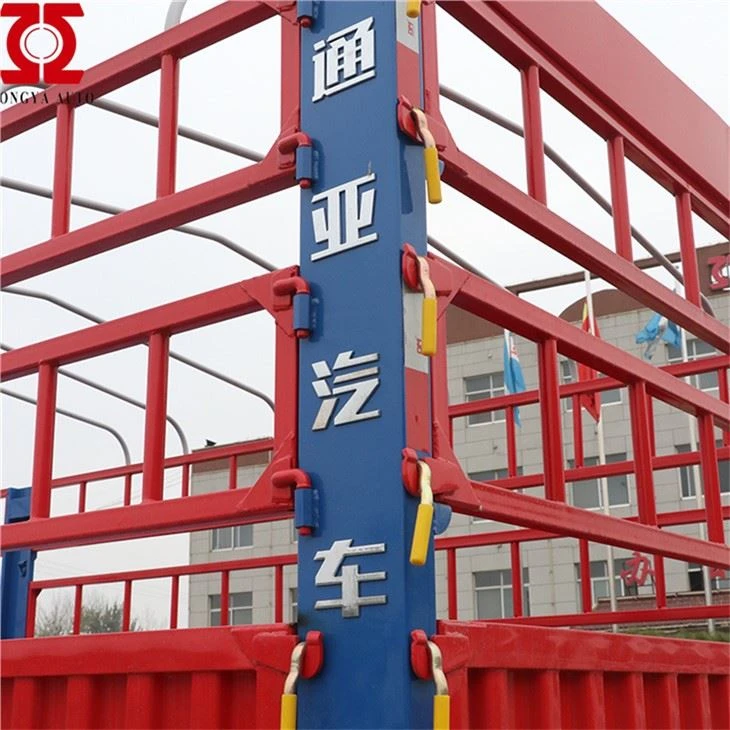

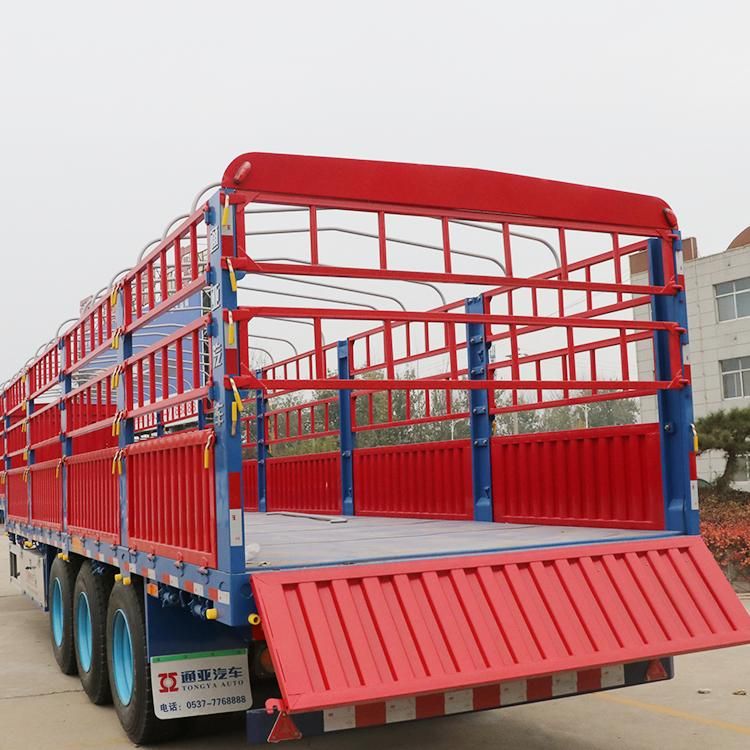

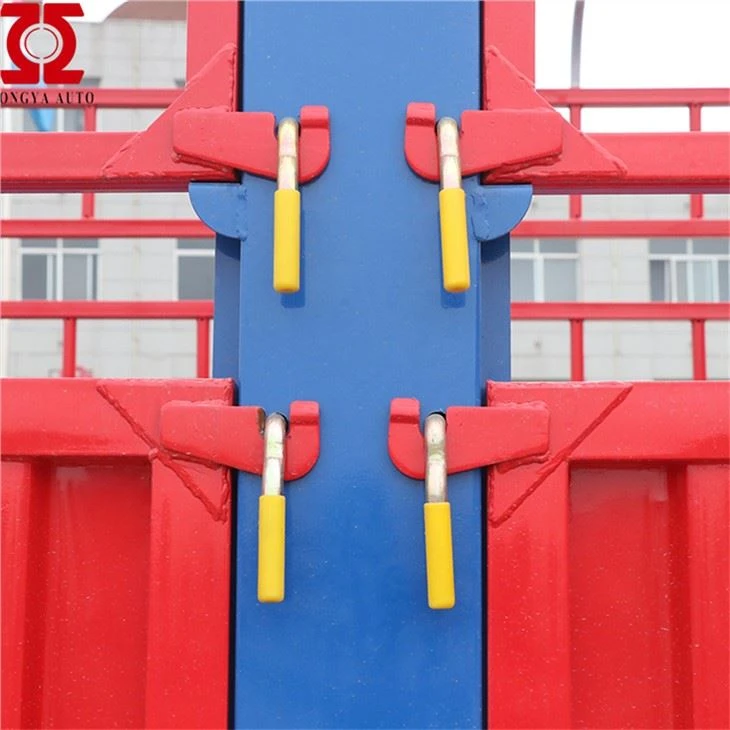

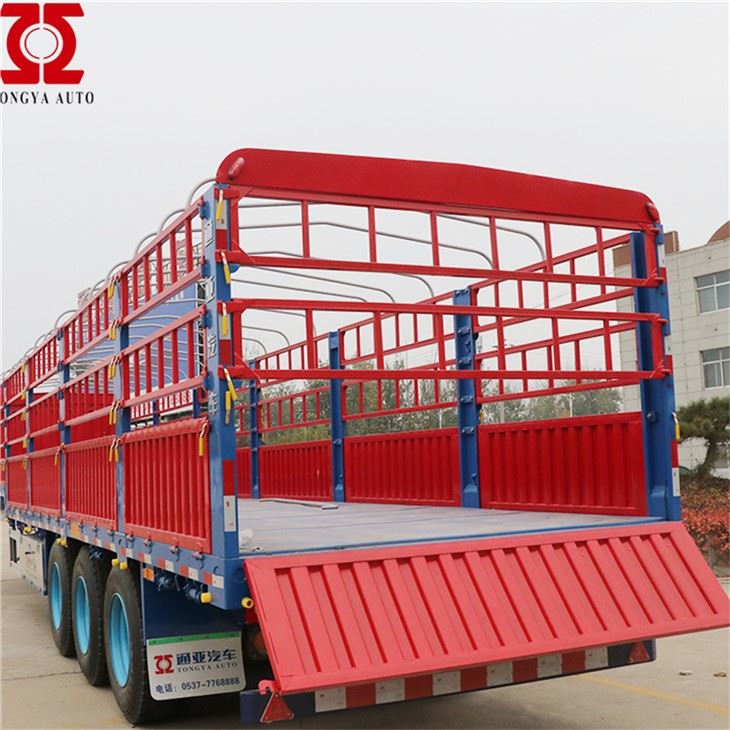

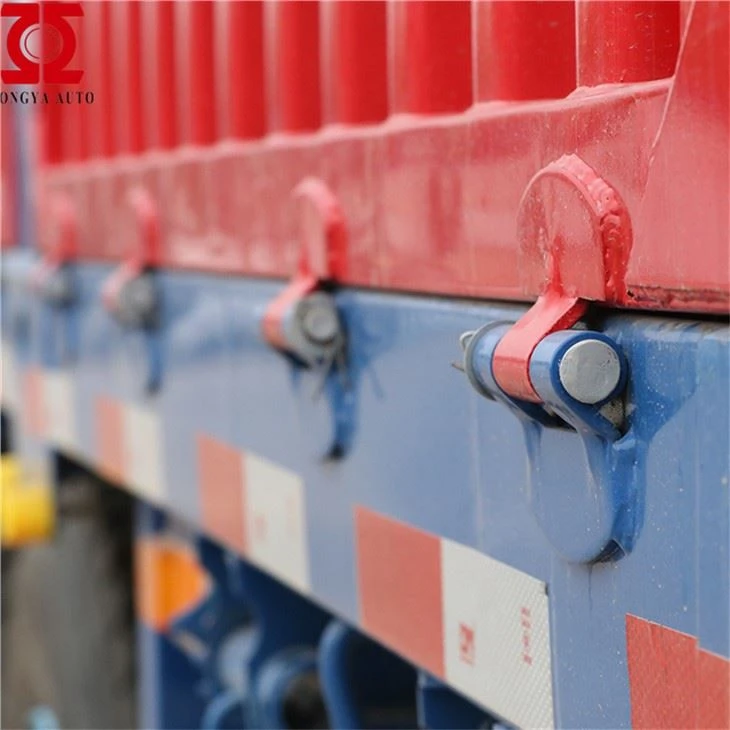

Side Wall	1500mm-1800mm ，the open door can be choose freely. With 300-500mm height square tube or round tube
Bottom Platform	3mm-5mm thickness (According to the capacity which you loading for )
Brake chamber	WABCO RE 6 relay valve; T30/30+T30 Spring brake chamber; One piece of 45L air tanks
ABS	Optional
Valve	WABCO valve
Light	LED light
Voltage	24V
Receptacle	7 ways (7 wire harness)
Tool box	One piece, 1m×0.5m×0.5m (Size can be choose freely)(equipped with 1 unit Tire spanner,1 unit gudgeon sleeve and 1 unit cranking bar)
Painting	Complete Chassis sand blasting to clean rust, 1 coat of anticorrosive prime, 2 coats of final paint
Shipping Terms:	By bulk cargo carrier, RORO or 40HQ container.
