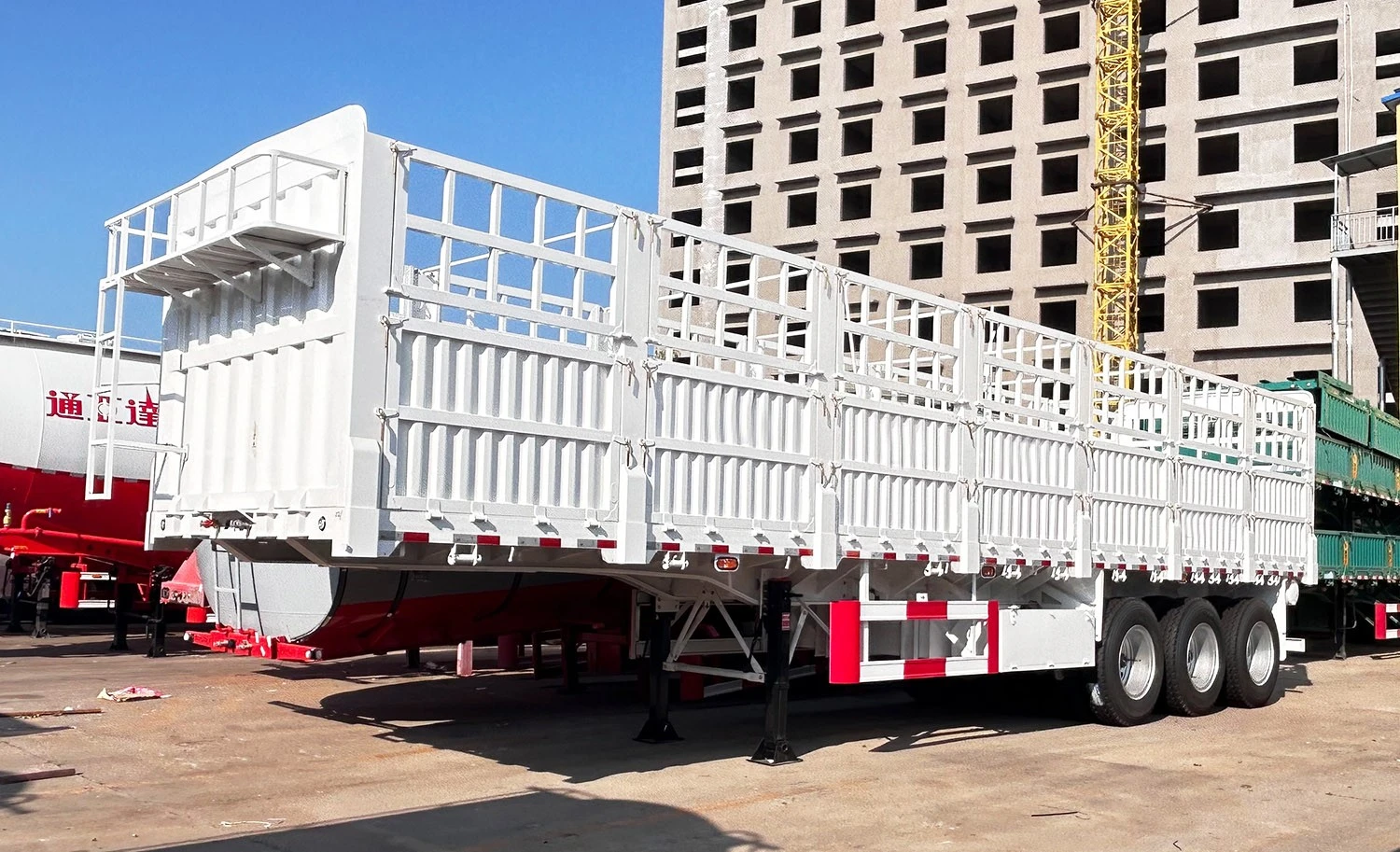

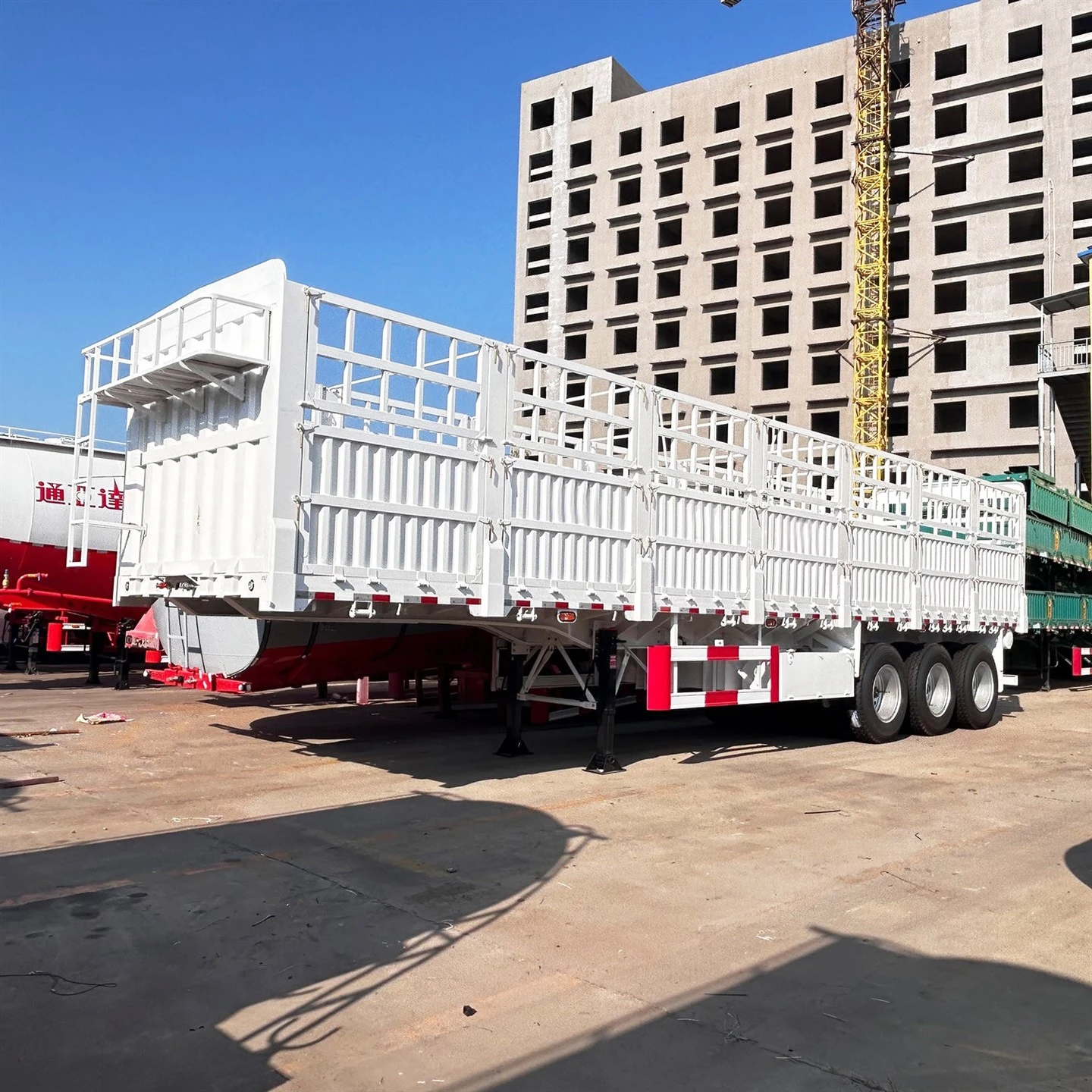

3 Axles Skeleton Semi Trailer Bulk Cargo Transportation
The 3 axles stake semi trailer is installed with fences on the working platform. With wide usage, it’s basically used for medium and long-distance transportation of medium and heavy goods as well as bulk cargo. Our company can also install additional container locks or detachable columns according to customers’ special requirements, so it can be used for container transportation or timber transportation. With strong applicability, it is the first choice for medium and long distance transportation.
Product Introduction
3 axles Fence Semi Trailer Bulk Cargo Transportation
Specifications:
| Overall Dimension | 13000*2500*3700mm or Customized |
| Curb Weight | 6.8T |
| Loading Capacity | 50T |
| Main Beam Spec. | Q345 Steel, Height:500mm, Plate Thickness:8-16mm |
| Side Frame | 16# Channel Steel |
| Cross Brace | 10# Channel Steel |
| Platform | 3mm diamond platform |
| Twist lock | 12pcs for container |
| Suspension | Mechanical Suspension |
| Leaf Spring | 10-layers leaf spring(90mm*13mm*10pcs) |
| Axle Spec. | 13T 3axles, FUWA or Tongya brand |
| King Pin | JOST Brand |
| Tire | 12R22.5 |
| Brake Chamber | 6sets |
| Landing Gear | JOST brand |
| Accessories | 1 Standard Tool Box |
| Electric System | 24V, One Set 6-core Standard Cable |
| Light | Tail lamp with turn signal,brake light & reflector,side lamp etc |
| Painting | Sand blasting, prime coating, surface painting,color optional, wax polishing |
| Packing | FCL Container, Ro-ro Shipment or Optional |
Send inquiry Contact Us For Exclusive Services And Preferential Price.
We are factory manufacturing, welcome you to visit our factory.
