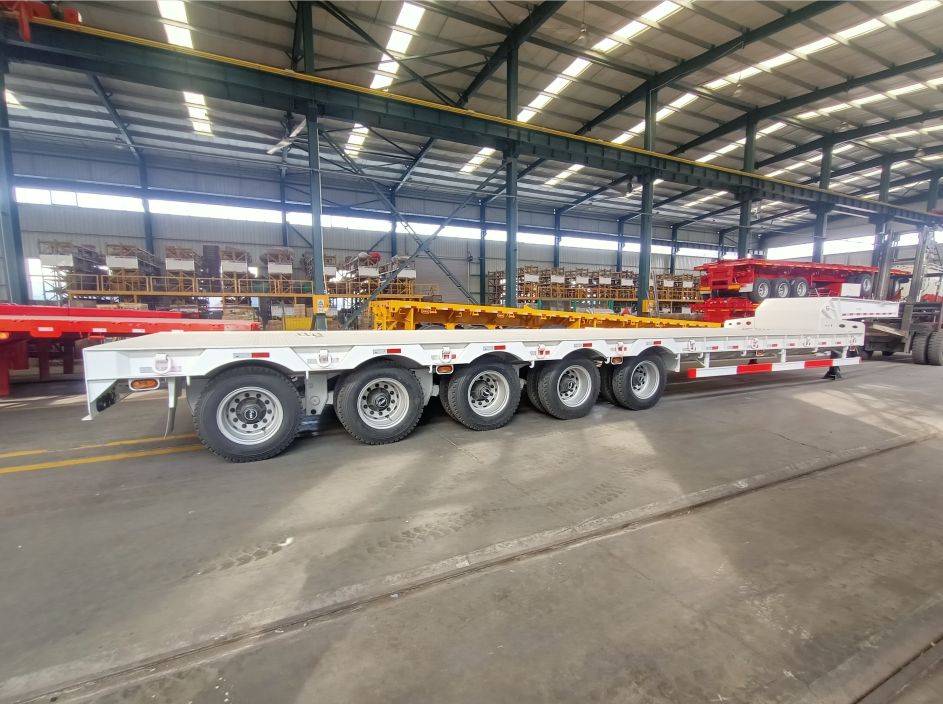

Semi Trailer For Heavy Machinery
Semi trailer for heavy machinery is custom-made according to customer’s special requirements. Now in the construction sites, there are many special heavy machinery, they are heavy and large enough, not convenient to move. So need a special vehicle to transport them. As to the special low bed semi trailer is designed to transport them
Product Introduction
Product introduction
Low bed semi trailer is widely used in transporting heavy machinery.
The length and width can be custom-made can work in different road condition and weather condition
Capacity can be made according to customer’s requirement
Product description
Semi trailer for heavy machinery is custom-made according to customer’s special requirements. Now in the construction sites, there are many special heavy machinery, they are heavy and large enough, not convenient to move. So need a special vehicle to transport them. As to the special low bed semi trailer is designed to transport them. The low bed semi trailer for heavy machinery is strong enough, the capacity of it can be more than 70tons, the structure of the trailer body is special reinforced, for example, the main beam, cross beam, side wall beam is big and thickened type, and the bottom plate is also thickened type, thus can support the heavy weight, beside, the trailer has 5 axles 20tires, as a result, even though the machinery is heavy, our trailer can still take it and go without any questions.
Specifications
|
Weight: |
Tare Weight |
13 T |
|
Loading capacity |
70 T |
|
|
Dimensions: |
Outside dimension |
15000*3000*1700 mm |
|
Frame: |
Design/welding technology |
Heavy duty and extra durability designed; |
|
Main beam |
Opting for high strength Q345B steel, |
|
|
Cross beam |
Heavy duty Special U steel |
|
|
Side beam |
20# channel steel, thickened type |
|
|
Floor |
5mm thickness checkered plate |
|
|
Rear ladder (ramps) |
without |
|
|
OEM parts:
|
Axle |
5 *13T capacity, FUWA brand |
|
King Pin |
3.5’’ bolting king pin, JOST brand |
|
|
Suspension |
American design (high-strengthen type) |
|
|
Steel Spring |
10pcs leaf spring, 16mm thickness, 90mm width |
|
|
Landing legs |
JOST brand, manual operation landing legs with sand shoe |
|
|
Tire specs |
11.00R20, Triangle brand |
|
|
Rim |
8.0-20 |
|
|
Number of wheel |
17 pieces(including one spare wheel) |
|
|
Brake system |
WABCO relay valve; |
|
|
Electrical: |
One unit of 24V 7-pin ISO 1185 socket; LED lights |
|
|
|
Painting |
color advised by client |
|
Marking |
Standard |
|
|
Side Guard |
Standard |
|
|
Spare Tire Carriers |
Two set of heavy duty spare wheel carriers |
|
|
Tools box |
One piece (1. 0*0. 5*0. 5m), under the goose neck(with necessary instruments inside) |

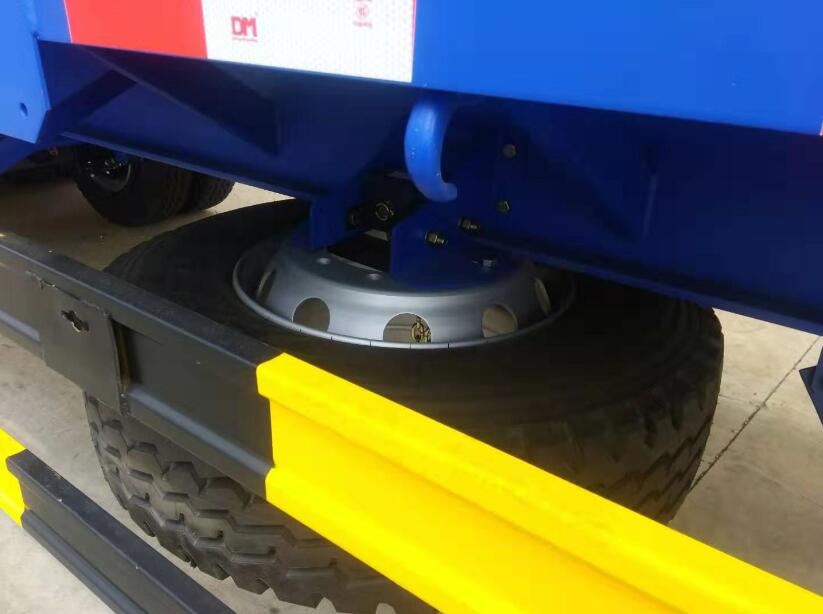

The spare tire: if the tire broken when working, can exchange the spare tire quickly and easily

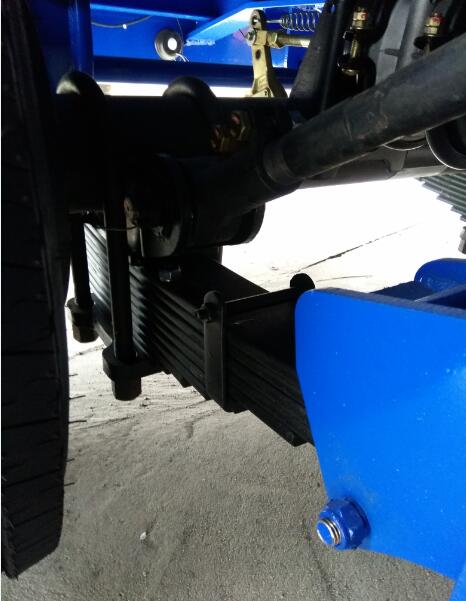

Under mounted suspension, can lower the height of working plate

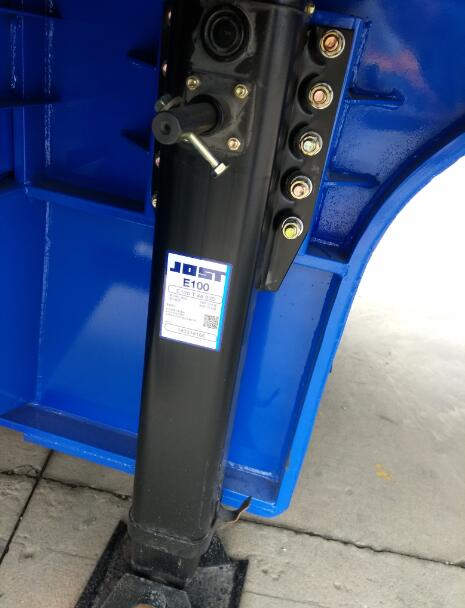

Landing gear
