Semi Trailer For Execavator
China semi trailer for excavator is usually means low bed semi trailers,as the excavator is not convenient to drive for long distance, if it need to go to a construction site for long distance, how can it do , then we will use low bed semi trailer for the excavator from one place to another for long distance.
Product Introduction
Product introduction
Low bed semi trailer is widely used in transporting excavator and other heavy machinery.
The length and width can be custom-made can work in different road condition and weather condition
Capacity can be made according to customer’s requirement
Product description
China semi trailer for excavator is usually means low bed semi trailers,as the excavator is not convenient to drive for long distance, if it need to go to a construction site for long distance, how can it do , then we will use low bed semi trailer for the excavator from one place to another for long distance. The semi trailer for excavator has a strong working plate and with two rear ladder, the excavator can climb to working plate through the two ladders. Besides, the dimensions of low bed semi trailer can also be designed basing on the dimensions of excavator, such as the length, width and even the height of working plate. What’s more, the capacity of semi trailer also be designed according to the weight of excavator.normally the capacity is 50-60tons, if the excavator is more heavy,no problem, we can reinforce the main beam, side beam, cross beam, as well as the quantity of axles.
Specifications
|
Weight: |
Tare Weight |
13 T |
|
Loading capacity |
60 T |
|
|
Dimensions: |
Outside dimension |
15000*3000*1700 mm |
|
Frame: |
Design/welding technology |
Heavy duty and extra durability designed; |
|
Main beam |
Opting for high strength Q345B steel, |
|
|
Cross beam |
Heavy duty Special U steel |
|
|
Side beam |
20# channel steel, thickened type |
|
|
Floor |
5 mm thickness checkered plate |
|
|
Rear ladder (ramps) |
rear ramp |
|
|
OEM parts:
|
Axle |
3 *13T capacity, FUWA brand |
|
King Pin |
3.5’’ bolting king pin, JOST brand |
|
|
Suspension |
American design (high-strengthen type) |
|
|
Steel Spring |
10pcs leaf spring, 16mm thickness, 90mm width |
|
|
Landing legs |
JOST brand, manual operation landing legs with sand shoe |
|
|
Tire specs |
11.00R20, Triangle brand |
|
|
Rim |
8.0-20 |
|
|
Number of wheel |
13 pieces(including one spare wheel) |
|
|
Brake system |
WABCO relay valve; |
|
|
Electrical: |
One unit of 24V 7-pin ISO 1185 socket; LED lights |
|
|
|
Painting |
color advised by client |
|
Marking |
Standard |
|
|
Side Guard |
Standard |
|
|
Spare Tire Carriers |
Two set of heavy duty spare wheel carriers |
|
|
Tools box |
One piece (1. 0*0. 5*0. 5m), under the goose neck(with necessary instruments inside) |

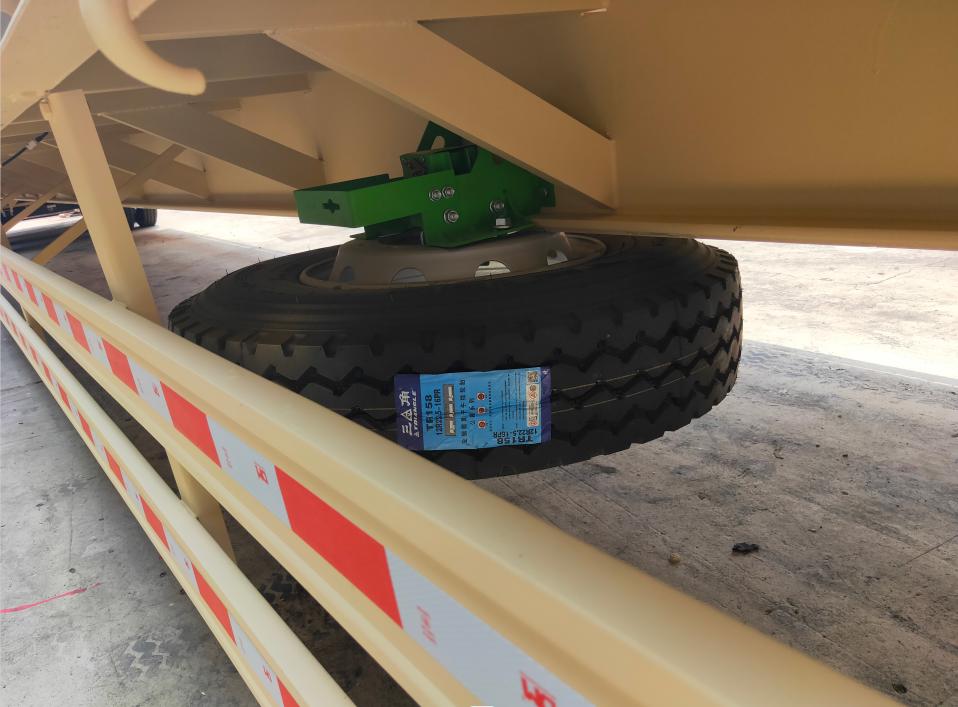

This is spare tire installed on the carrier, when other tire broken, driver can exchange the spare tire very convenient and quickly.

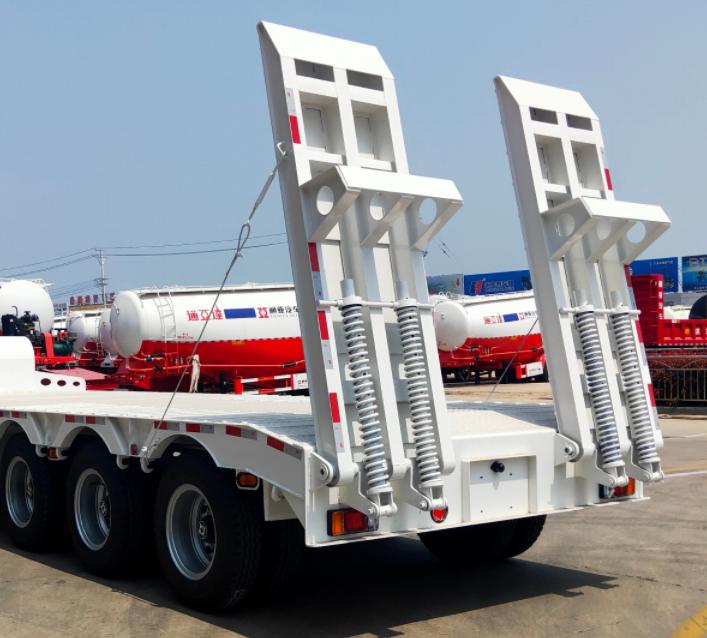

This is rear ladder with springs, the excavator and other heavy machinery can climb to working plate very easily.

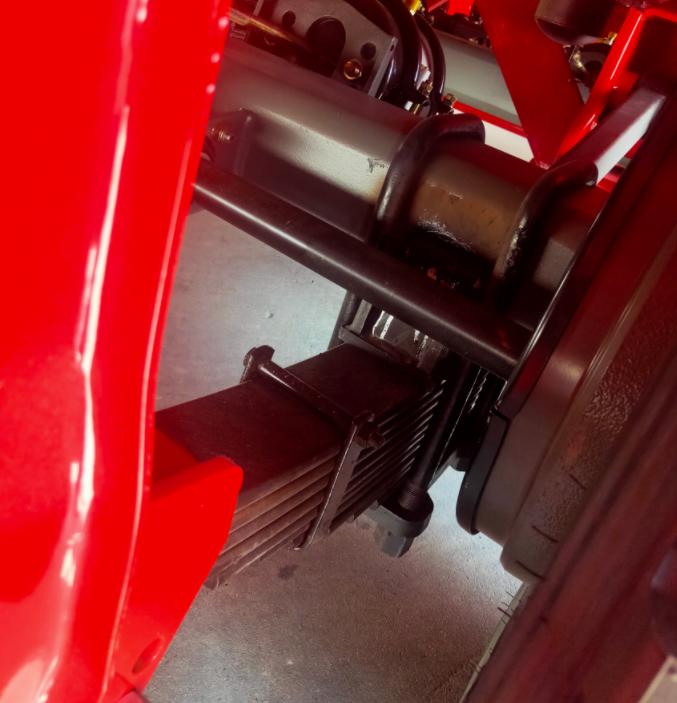

This is underslung suspension,can low the height of working plate, thus the trailer can be very stable and safety.
