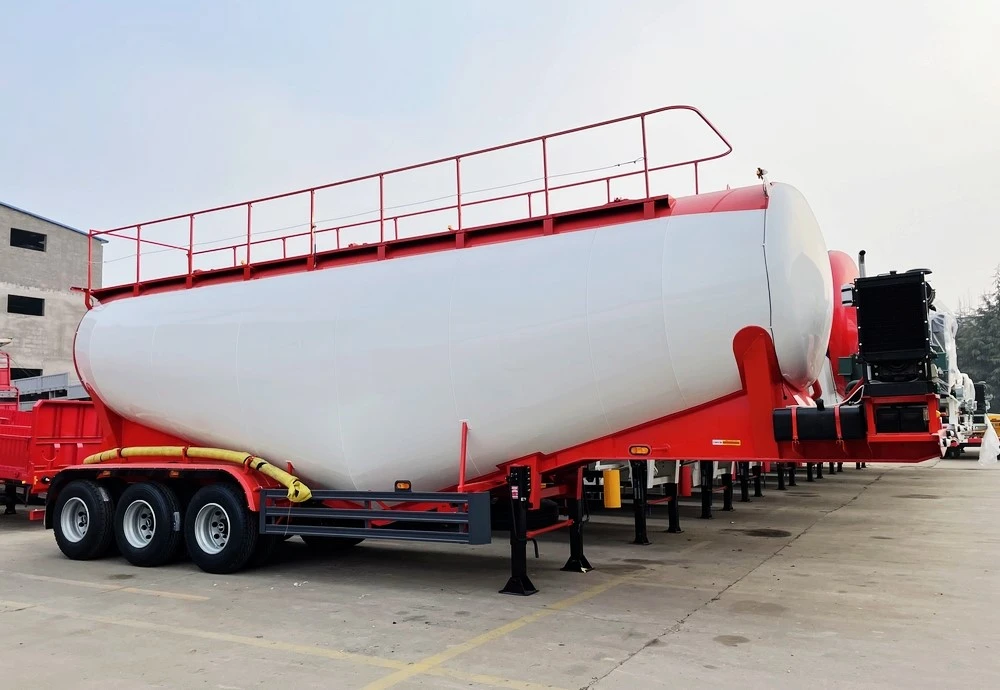

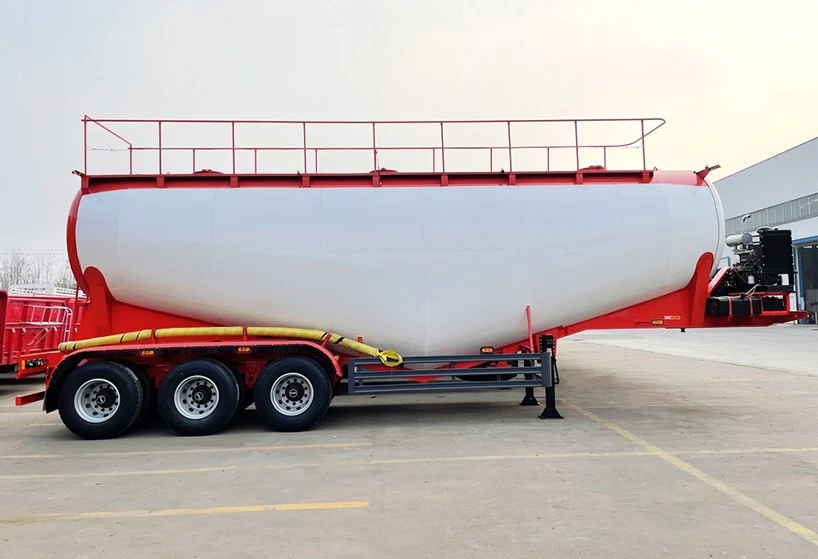

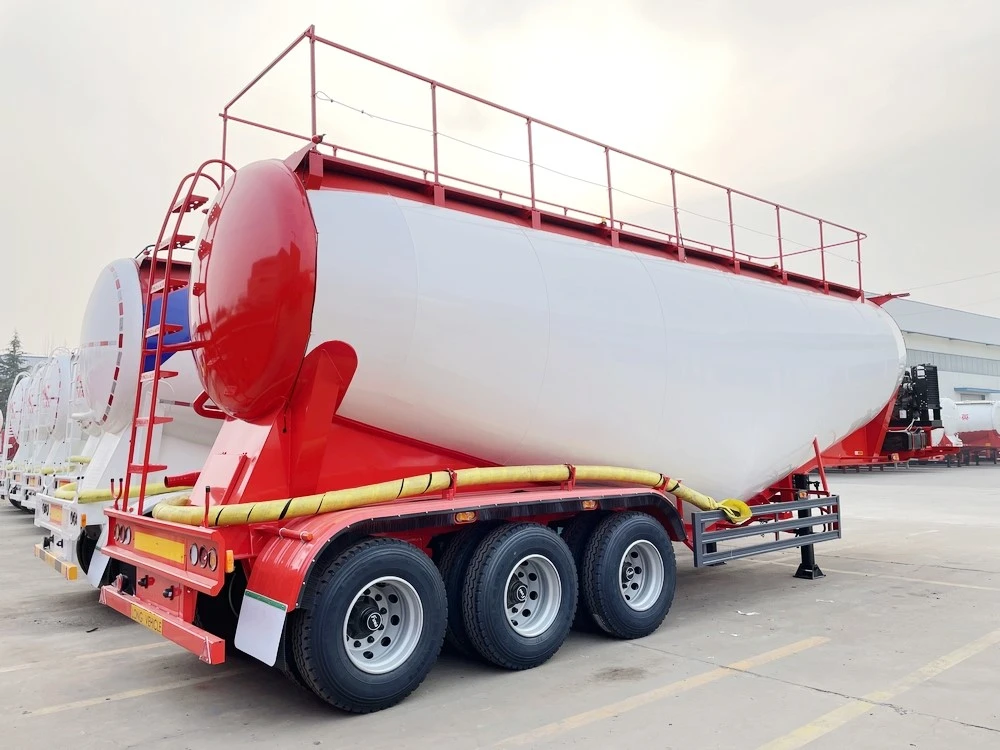

Hot Selling China Brand TONGYA Dry Bulk Cement Tank Semi Trailer With Quality

Weight:

Tare Weight

11T

Loading capacity

60 T

Total weight

71T

Dimensions:

Dimension

11700×2500*3900mm (The final dimensions depend on the final design drawings)

Tanker capacity

50m3 (50000L)

Tanker body:

Design/welding technology

Heavy duty and extra durability designed;

welding by automatic Submerged-Arc processes.

Tanker body

The tanker body made of 5mm, tanker ends made of 6mm thickness steel, Q235 steel

Bottom chassis

High strength Q345B steel

Tanker shape

"V" shape

Silo

1 silo

Manhole:

3 pieces, (Diameter is 500mm)

Discharge mouth

4 inch Discharge mouth

Safety pressure valve

Standard

Discharge hose

8m with Hose carries, the length is according to customer requirement

Air compressor

12m3 double-cylinder air compressor, Bohai brand

Engine

Diesel Engine,Weichai 4102 engine

Rear ladder and handrail

Standard

Retention volume

<0.3%

OEM parts:

Axle

3* 13 tons capacity, FUWA brand (Chinese best brand)

King Pin

2.00 /3.5 inch, bolting king pin, JOST brand

Suspension

Heavy duty suspension with equalizers, American design (high-strength type)

Steel Spring

Six sets of 10pcs leaf spring, 16mm thickness, 90mm width

Landing legs

JOST A300C or TONGYA 28T

Tire specs

12R22.5, Triangle brand

Rim

9.0

Number of wheel

13 pieces(including one spare wheel)

Brake system

WABCO relay valve;

Four double and two single brake chamber;

One unit of reliable local brand 45L air tank;

Two units of reliable local brand standard coppery air-connector.

ABS system

Without(Can be choose freely,450 USD/set)

Electrical:

One unit of 24V 7-pin ISO 1185 socket; LED light

(standard rear light, turn light, rear reflector, side light, side reflector etc.)

Miscellaneous:

Painting

color advised by client

Marking

Standard

Side Guard

Standard

spare wheel carrier

Two set of heavy duty spare wheel carriers, including a riser.

Tools box

One piece (1. 0*0. 5*0. 5m)

(equipped with 1 Tire spanner,1 gudgeon sleeve and 1 cranking bar)

Note: All the details not mentioned will design as the final confirmation with the customer
