The Hydraulic Detachable Goose-neck Low Bed Semi Trailer

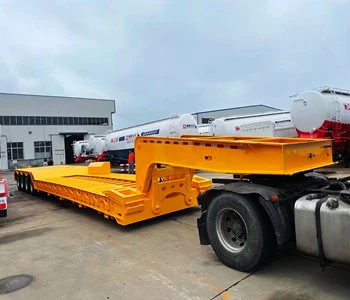

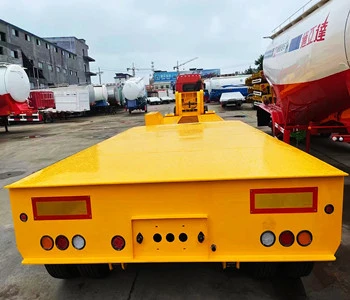

Product picture
Product specification
Dimensions | 18500x3000x1170MM |
Axle specs. | 4 AXLE, Fuwa brand, 13tons. |
Suspension | Mechanical Suspension(Air suspension) |
King Pin | JOST 2" traction pin |
Support legs | JOST brand 28T |
Wheelbase | 1310 |
Steel Spring | Heavy Duty Leaf Spring |
Suspension | Mechanical anti-install suspension |
Electrical system | 24V, 7 pin socket, One set 7-core standard Cable |
Tire | 275/80R22.5,16pieces |
The material of Main beam | Upper plate thickness is 20mm, middle plate thickness is 20mm, down plate thickness is 12mm;Material is Q345 Carbon Steel. |
Side beam | 25mm channel steel (Material is Q235 carbon steel) |
Platform plate | 5 mm Diamond Plate |
Ladder | Mechanical ladder |
Brake | Kemi Brand of China |
Brake Chamber | WABCO RE 6 relay valve; T30/30+T30 Spring brake chamber(TAIYUE brand); One piece of 45L air tanks |
ABS system | optional |
Light | Tail lamp with turn signal, brake light & reflector, side lamp etc |
Tool box | 1 sets(waterproof type) |
Spare tire carrier | 1 sets(Patent type) |
Painting | Complete Chassis sand blasting to clean rust, 2 coat of anticorrosive primer, 2 coats of final paint |
Packing | Polish with wax before shipping |

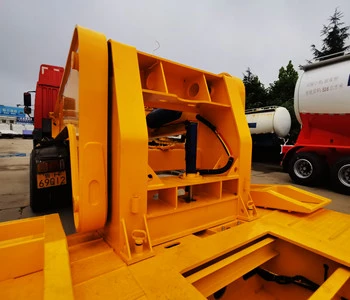

Product detail
Product advantage:
1. Advanced manufacturing technology Laser cutting, robot automatic welding, reliable quality 2. Advanced painting techniques KTL electrophoresis + powder spraying, instead of the traditional painting process, has a good anti-corrosion effect, long service life. 3. Assembly structure The frame parts adopt assembly structure, which is easy to replace and maintain, and reduce the maintenance cost. 4. Custom design There are many types of low chassis semitrailers available: unloaded, exposed tire design, single tire, twin tire, back or front ramp to meet the different needs of customers. 5. Warranty Main beam: 2 years 6. Global semi-trailer accessories brands such as BPW,WABCO,JOST and Micheli
