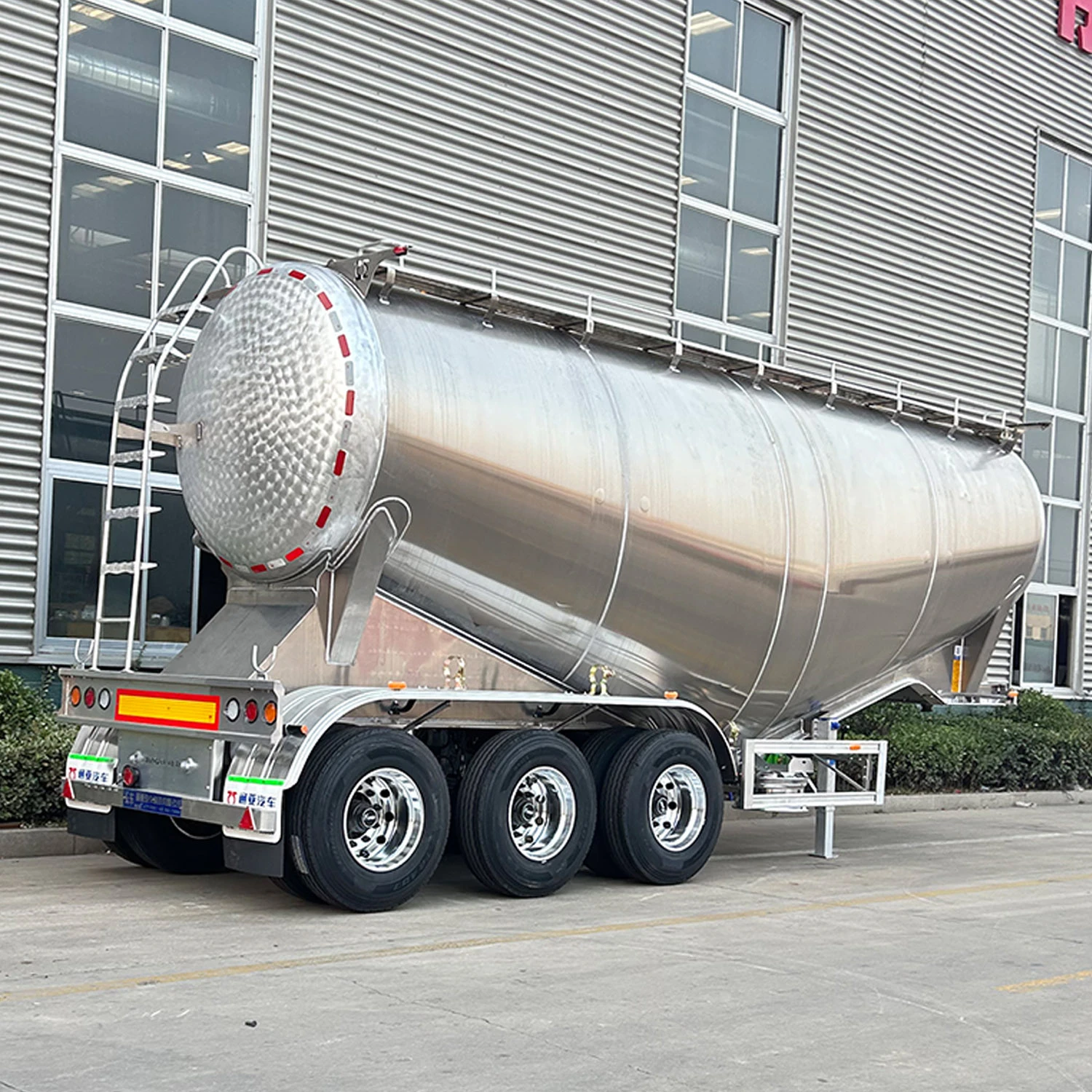

Aluminum Bulk Cement Tanker Trailer

Weight:

Tare Weight

8T

Loading capacity

30 T

Total weight

38 T

Dimensions:

Dimension

8500×2500*3700mm (The final dimensions depend on the final design drawings)

Tanker capacity

30m3 (30000L)

Tanker body:

Design/welding technology

Heavy duty and extra durability designed;

welding by automatic Submerged-Arc processes.

Tanker body

The tanker body made of 5mm, tanker ends made of 6mm thickness steel, Q235 steel

Bottom chassis

High strength Q345B steel

Tanker shape

"V" shape

Silo

1 silo

Manhole:

2 pieces, (Diameter is 500mm)

Discharge mouth

4 inch Discharge mouth

Safety pressure valve

Standard

Discharge hose

8m with Hose carries, the length is according to customer requirement

Air compressor

12m3 double-cylinder air compressor, Bohai brand

Engine

Diesel Engine,Weichai 4102 engine

Rear ladder and handrail

Standard

Retention volume

<0.3%

OEM parts:

Axle

3* 13 tons capacity, FUWA brand (Chinese best brand)

King Pin

2.00 /3.5 inch, bolting king pin, JOST brand

Suspension

Heavy duty suspension with equalizers, American design (high-strength type)

Steel Spring

Six sets of 10pcs leaf spring, 16mm thickness, 90mm width

Landing legs

JOST brand, manual operation landing legs with sand shoe

Tire specs

12R22.5, or 315/80R22.5 Triangle brand

Rim

9.0-22.5

Number of wheel

13 pieces(including one spare wheel)

Brake system

WABCO relay valve;

Four double and two single brake chamber;

One unit of reliable local brand 45L air tank;

Two units of reliable local brand standard coppery air-connector.

ABS system

Without(Can be choose freely,450 USD/set)

Electrical:

One unit of 24V 7-pin ISO 1185 socket; LED light

(standard rear light, turn light, rear reflector, side light, side reflector etc.)

Miscellaneous:

Painting

color advised by client

Marking

Standard

Side Guard

Standard

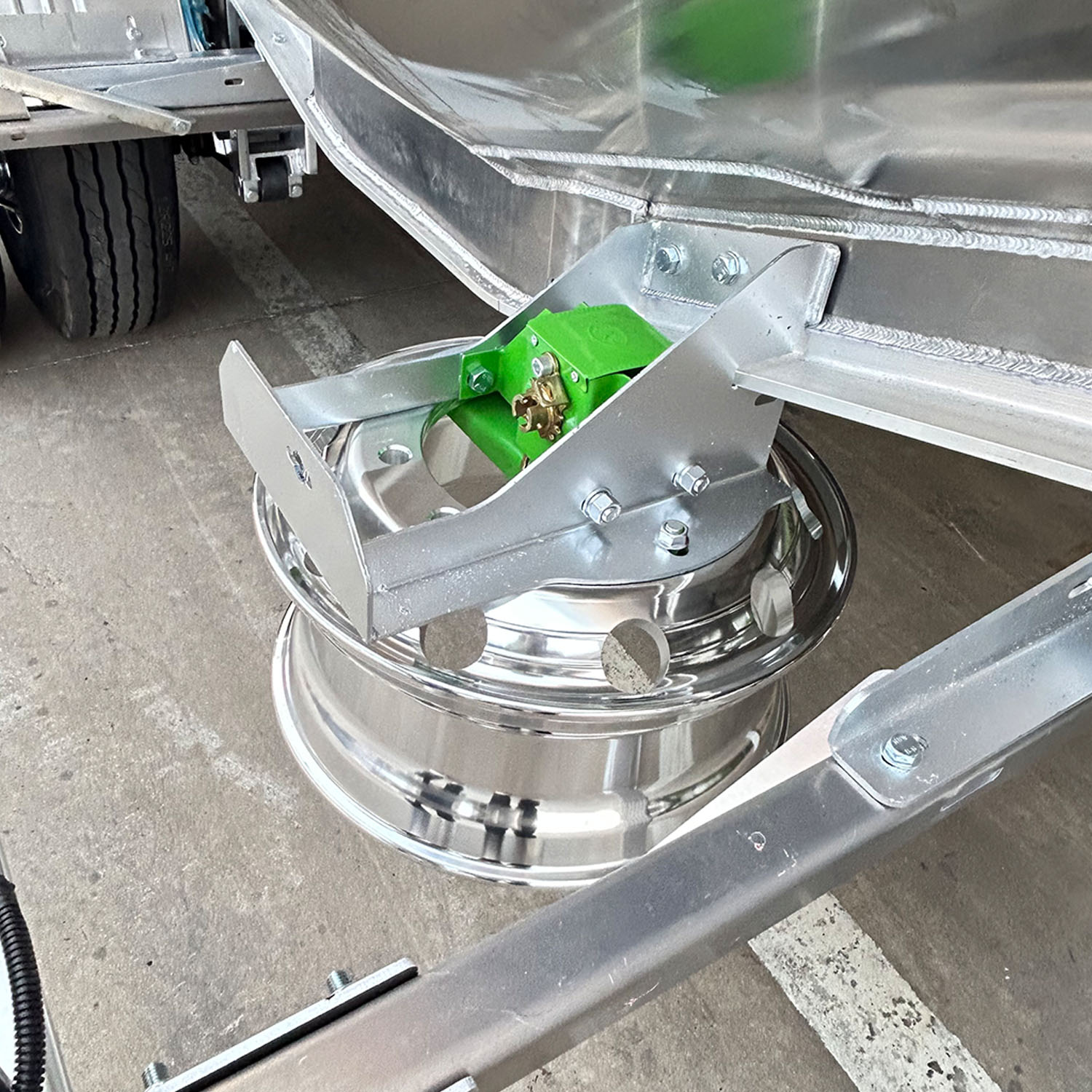

spare wheel carrier

Two set of heavy duty spare wheel carriers, including a riser.

Tools box

One piece (1. 0*0. 5*0. 5m)

(equipped with 1 Tire spanner,1 gudgeon sleeve and 1 cranking bar)

Note: All the details not mentioned will design as the final confirmation with the customer
