China Hot Sale Flatbed Tractor Trailer With Durable Quality
Flatbed tractor trailer is used for loading container or dry cargos. Main beams welded by advanced large-scale special welding machines automatically. TONGYA brand and CCC/ISO9001 certificates approved. We adopt famous brand parts for our trailers, ensuring good characters. We are Chinese leading professional manufacturer from 1982, you can customize your own trailers, we design and manufacture as per your exact requirements.
Product Introduction

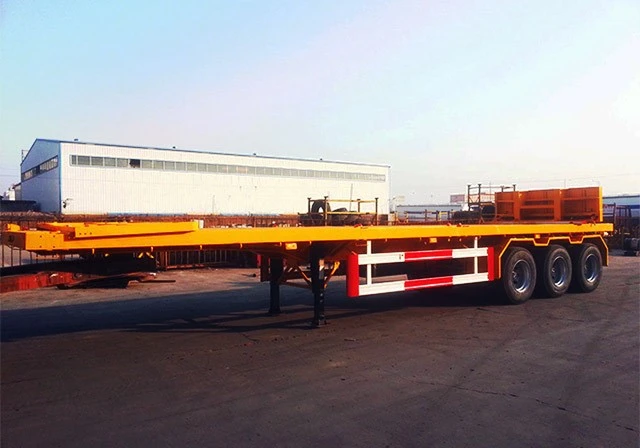

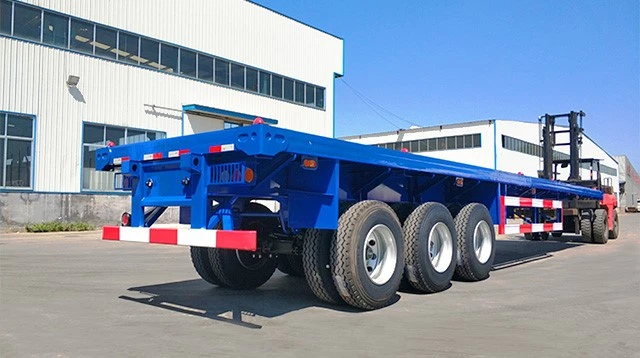

China Hot Sale Flatbed Tractor Trailer with Durable Quality
Our flat bed tractor trailer: This trailer mainly suitable for the Mid/Long distance transportation of Standard containers or ISO tank container, this trailer can carry for dry cargos, 1*40FT,2*20FT,1*20FT. The capacity is for 45 tons, we can design and manufacture it according to your exact requirements. The axles can also be chosen your best favorite brands with different tonnages by your needs. The suspensions can be air suspension or mechanic(leaf spring suspension), bogie suspension, etc. The loading deck can be concave beams, tire appeared cover, totally flatbed, or extendable. The parameters of the trailer are just common configurations, not absolute. The specific configuration of the trailer will be executed according to your needs. We also do OEM and ODM. If you are interested in understanding our abilities and the trailer, we are always welcome. The final price of trailer is determined by the truck trailer configuration you choose. Therefore, if you are interested in purchasing products, please contact us freely.
Specifications:
|
Model |
flat bed tractor trailer |
|
Overall size |
12,500mm*2,500mm*1,550mm |
|
Tare weight |
7,200kgs |
|
Payload |
45,000kgs, we can also design as per your requirements |
|
I Beam & Chassis |
Heavy duty and extra durability designed I beam; Opting for high tensile steel Q345B, welded by automatic Submerged-Arc processes. Top Flange 16mm, width 140mm; Middle Flange 8mm,Height 500mm, Bottom Flange 16mm, width 140mm |
|
Axle |
Tongya brand, 13T/axle |
|
Number of axles |
3 axles |
|
Suspension |
Heavy duty mechanical suspension |
|
Floor |
3mm diamond steel plate |
|
King Pin |
JOST brand 2” Bolt-in King Pin |
|
Landing Gear |
JOST brand Two-speed, manual operating, heavy duty landing gear |
|
Wheel Rim |
9.0-22.5, 13 pieces |
|
Tire |
12R22.5, 13 pieces |
|
Spare Tire |
2 units |
|
Twist Lock |
12 units |
|
Braking System |
WABCO RE 6 relay valve; T30/30+T30 Spring braking chambers; two pieces of 45L air tanks |
|
Painting |
Complete Chassis sand blasting to clean rust, 1 coat of anticorrosive prime, 2 coats of final paint |
|
Tool box |
One standard tool box (Size can be chosen freely)(equipped with 1 unit tire spanner, 1 unit gudgeon sleeve and 1 unit cranking bar) |
Send inquiry Contact Supplier For Exclusive Services And Preferential Price.
We are factory manufacturing, welcome you to visit our factory.
Package and shipping:Naked,waxing,shipping by container or by RO-RO or bulk cargo ship.
