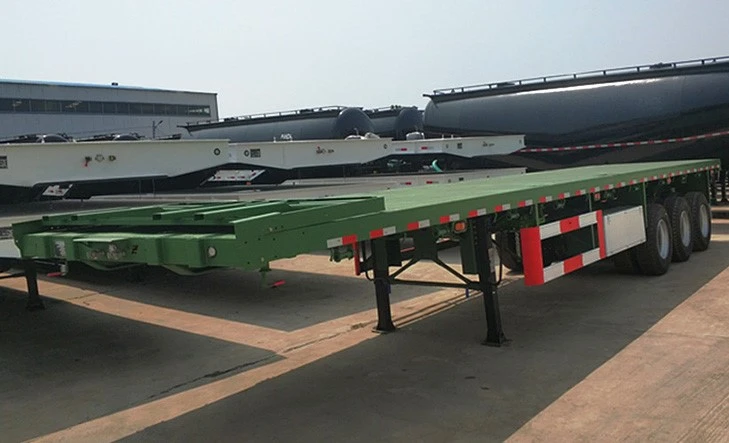

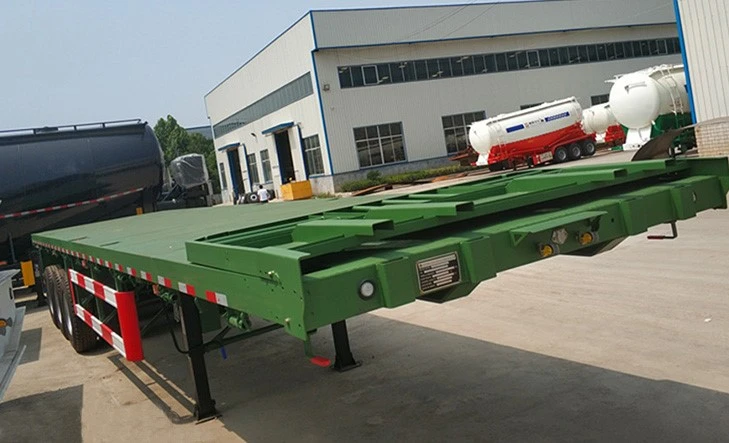

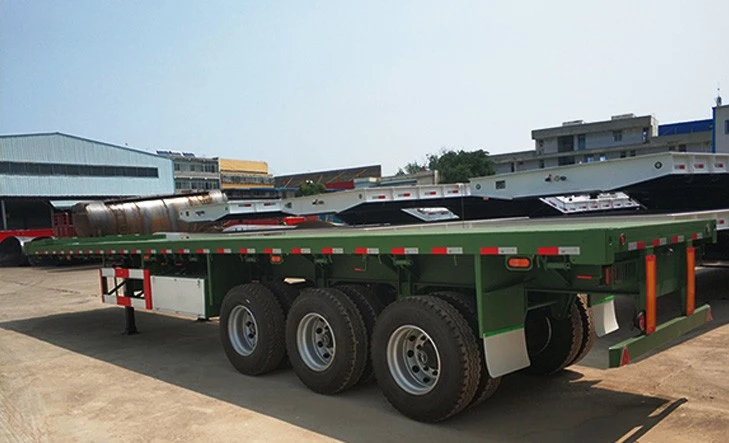

China Hot Sale 3 Axles Container Flatbed Trailer With Durable Quality
3 axles container flatbed trailer is used for loading container or dry cargos. Main beams welded by advanced large-scale special welding machines automatically. TONGYA brand and CCC/ISO9001 certificates approved. We adopt famous brand parts for our trailers, ensuring good characters. We are Chinese leading professional manufacturer from 1982, you can customize your own trailers, we design and manufacture as per your exact requirements.
Product Introduction
China Hot sale 3 axles container flatbed trailer with durable quality
Our 3 axles container flatbed trailer: Surfaces cleaned by shot blasting. One epoxy coating and acrylic finish coating. Durable against rust, support longer good looking and service life. Submerged arc Automatic welding construction, Key point reinforces and purposeful welding avoid some parts easier lose welding according experience support vehicle longer time working without repairing. BPW, FUWA worldwide best axles work with WABCO brake valve, more effectively brake for safe and save tire cost Fix quality springs and suspensions, support longer service life, save maintain cost. We cooperate with well-known shipping companies, such as MAERSK, NYK and Wallenius, ensuring the transportation of each shipment. Experienced teams choose the most suitable shipping way for different clients among containers, RORO and bulk shipment, balancing safety and the economic cost. Tongya automobile Co., Ltd. is one of the most professional trailer manufactures in China. Main Products are flatbed semi trailer/low bed semi trailer/fuel tanker trailer/bulk cement tank trailer, etc. TONGYA will try our best to support our cooperators, building a common future.
Send inquiry Contact Supplier For Exclusive Services And Preferential Price.
We are factory manufacturing, welcome you to visit our factory.
Product Specification:
|
Model |
3 axles container flatbed trailer |
|
Overall size |
12,500mm*2,500mm*1,550mm |
|
Tare weight |
7,200kgs |
|
Payload |
45,000kgs, we can also design as per your requirements |
|
I Beam & Chassis |
Heavy duty and extra durability designed I beam; Opting for high tensile steel Q345B, welded by automatic Submerged-Arc processes. Top Flange 16mm, width 140mm; Middle Flange 8mm,Height 500mm, Bottom Flange 16mm, width 140mm |
|
Axle |
Tongya brand, 13T/axle |
|
Number of axles |
3 axles |
|
Suspension |
Heavy duty mechanical suspension |
|
Floor |
3mm diamond steel plate |
|
King Pin |
JOST brand 2" Bolt-in King Pin |
|
Landing Gear |
JOST A300C or TONGYA 28T |
|
Wheel Rim |
9.0-22.5, 13 pieces |
|
Tire |
12R22.5, 13 pieces |
|
Spare Tire |
2 units |
|
Twist Lock |
12 units |
|
Braking System |
WABCO RE 6 relay valve; T30/30+T30 Spring braking chambers; two pieces of 45L air tanks |
|
Painting |
Complete Chassis sand blasting to clean rust, 1 coat of anticorrosive prime, 2 coats of final paint |
|
Tool box |
One standard tool box (Size can be chosen freely)(equipped with 1 unit tire spanner, 1 unit gudgeon sleeve and 1 unit cranking bar) |
