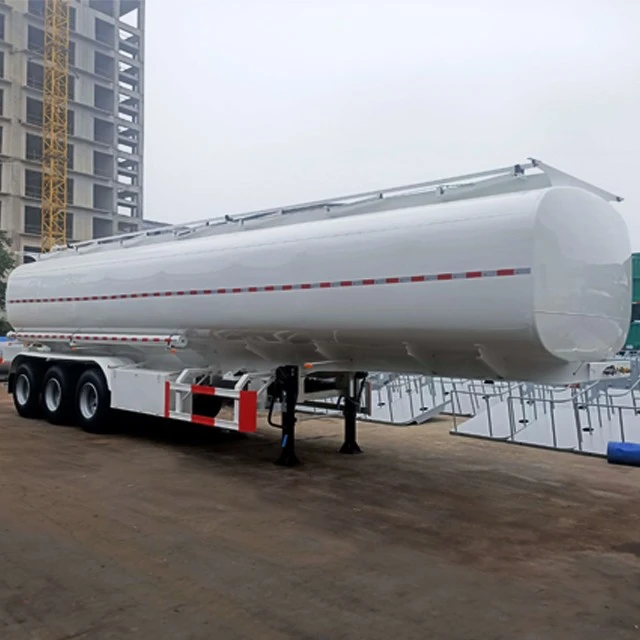

3 axle 45,000-liter tank truck trailer
Container Shipment( below 41 cbm can load in a 40hq, more than 42 cbm needs a big container and a small container. ) Bulk Shipment. This is the most common way, it can keep the completeness of the trailer. Ro- Ro shipment. The price of Ro- Ro shipment is the most expensive of all ways. It can protect the trailer well and keep the completeness of the trailer.
Product Introduction
3 axles 45000litres fuel tanker trailer supplier
All various fuel products can be carried with 3 axles 45000litres fuel tanker trailer. Petroleum,Diesel,Fuel oil,JET A1 and many other types of fuel products transportation suitable with three axle tanker semi-trailer.Loading capacity between 20.000 ltr to 57.000 ltr for 3 axles 45000litres fuel tanker trailer. Compartment quantities can be arranged acording to the customer request on 3 axle fuel tanker semi-trailer.
Your should know 3 axles 45000litres fuel tanker trailer supplier Main parts :
1. With safety devices: the manhole is an explosion-proof large cover. The bottom outlet of the tank is equipped with an emergency shut-off valve.
2. The tank body is automatically welded by an advanced large-scale special welding machine.
3. Our tanker body is longitudinally welded. Ensure the safety of the tanker and increase the service life.
4. Water filled test equipment Water tank: To ensure the high sealed of tank body and avoid the leaks oil.
5. The waved board reduces the impact of the liquid on the tanker.
Send an inquiry and we will give you exclusive price discounts.
Product specification
|
Basic Information |
||
|
Outer size |
12000x2500x3780mm |
|
|
Design Capacity (gross) |
45000L |
|
|
Tare weight (±3%) |
13000KG |
|
|
Type |
Tri-axle semi-trailer |
|
|
Coupling height |
Unladen 1320 mm |
|
|
Tank assembly |
||
|
Compartment |
Optional |
|
|
Front/Rear end plate |
Material |
Carbon steel |
|
Front/Rear end plate |
thickness |
6mm |
|
Tank body (with insulating layer) |
Material |
Carbon steel |
|
Thickness |
5mm |
|
|
Wave-proof plate thickness |
4mm |
|
|
Manhole cover |
Diameter |
500mm |
|
Material |
Factory standard |
|
|
Number |
2-6pcs (optional ) |
|
|
Discharging valve |
Diameter |
3 inch |
|
Material |
Aluminum Alloy API valve |
|
|
Number |
2-6 pcs(optional ) |
|
|
Bottom safety valve |
Aluminum Alloy 4 inch |
|
|
Discharging pipe |
Diameter |
3 inch |
|
Type |
Rubber hose,2pcs |
|
|
Cat walk |
Standard |
|
|
Chasis |
||
|
Axle |
Brand |
Fuwa |
|
Type |
13t |
|
|
Number |
3pcs |
|
|
Rim |
Type |
9.0-22.5 |
|
Number |
/12 pcs |
|
|
Tire |
Brand |
Triangle brand |
|
Type |
12R22.5 |
|
|
Number |
12pcs |
|
|
Suspension |
Mechaniacal suspension / air suspension can be optional |
|
|
Spring leaf |
Leaf width |
90mm |
|
Leaf thickness |
13mm |
|
|
Layer/set |
10 Layer |
|
|
King pin |
Type |
Bolts type |
|
Diameter |
2 inch |
|
|
Brake system |
Air tank |
45L air tanks |
|
Brake chamber |
WABCO RE6 relay valve; T30/30+T30 Spring brake chamber |
|
|
ABS |
Optional |
|
|
Landing gear |
Brand |
JOST |
|
Type |
E100 |
|

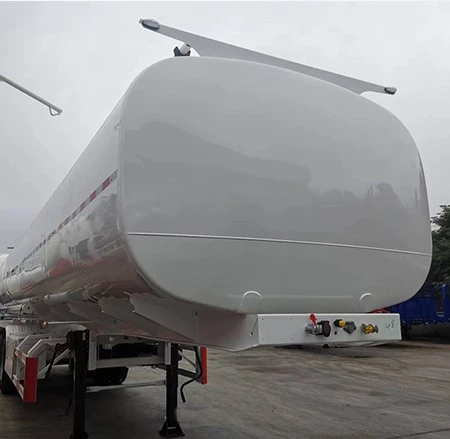

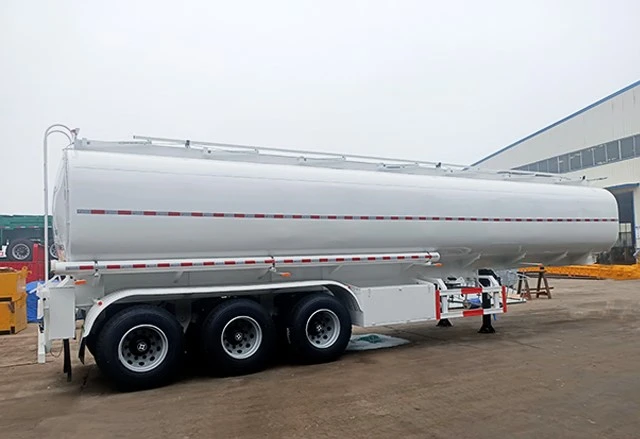

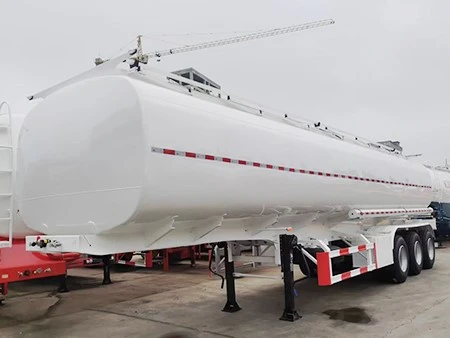

Product detail drawing
Company introduction
1.Established in 1982, we are a professional manufacturer of semi trailers. We also get ASME certificate, ADR certificate, ISO certificate, CCC certificate and so on.
2.We are manufacturer, According to clients' requirements, we can customize different volumes and compartments.
3. We adopt famous brand parts for our tank trailer, it save costs & ensure long-time service.
Flat Rack. It is one of the containers but it has lengthy limited that is about 11.7 meters.
