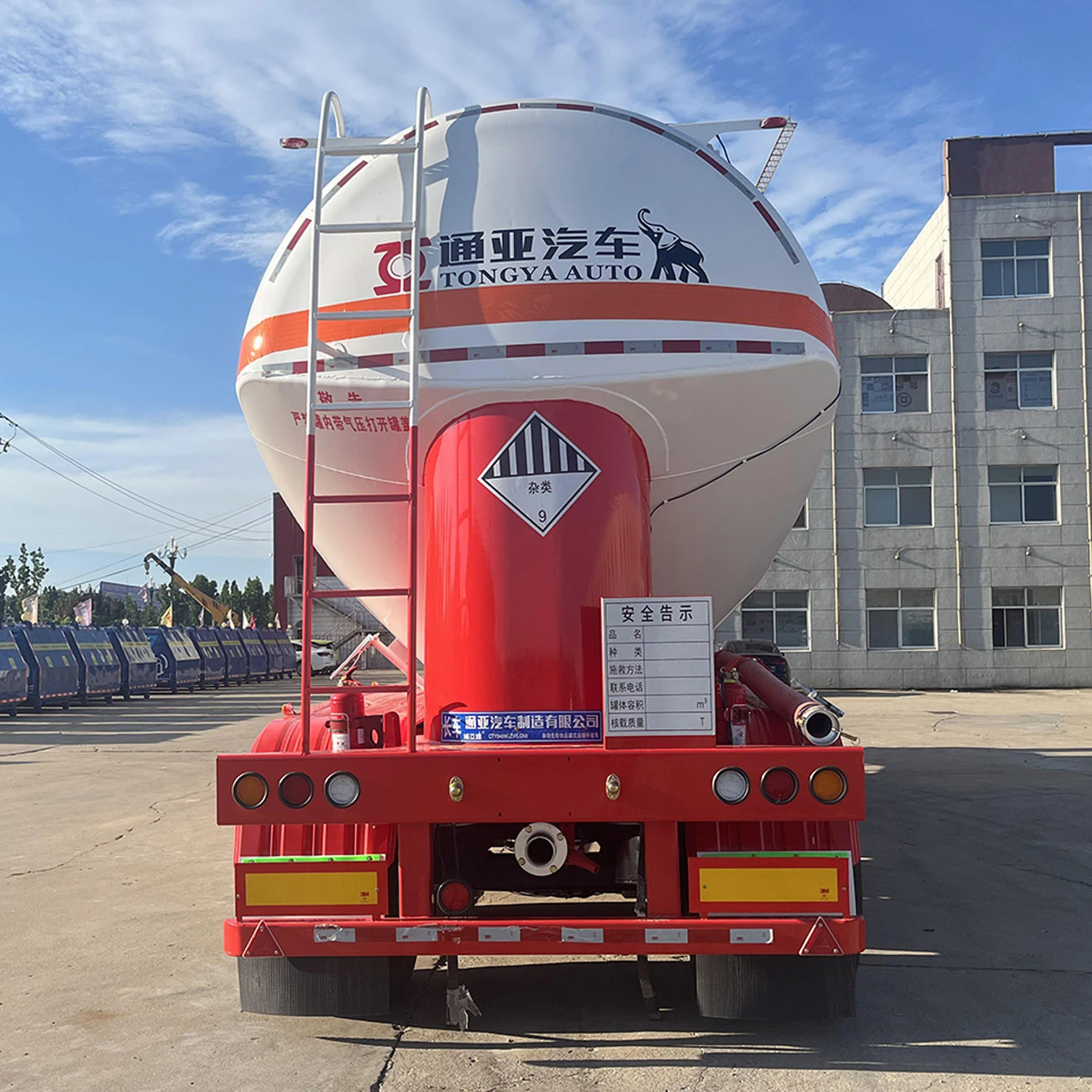

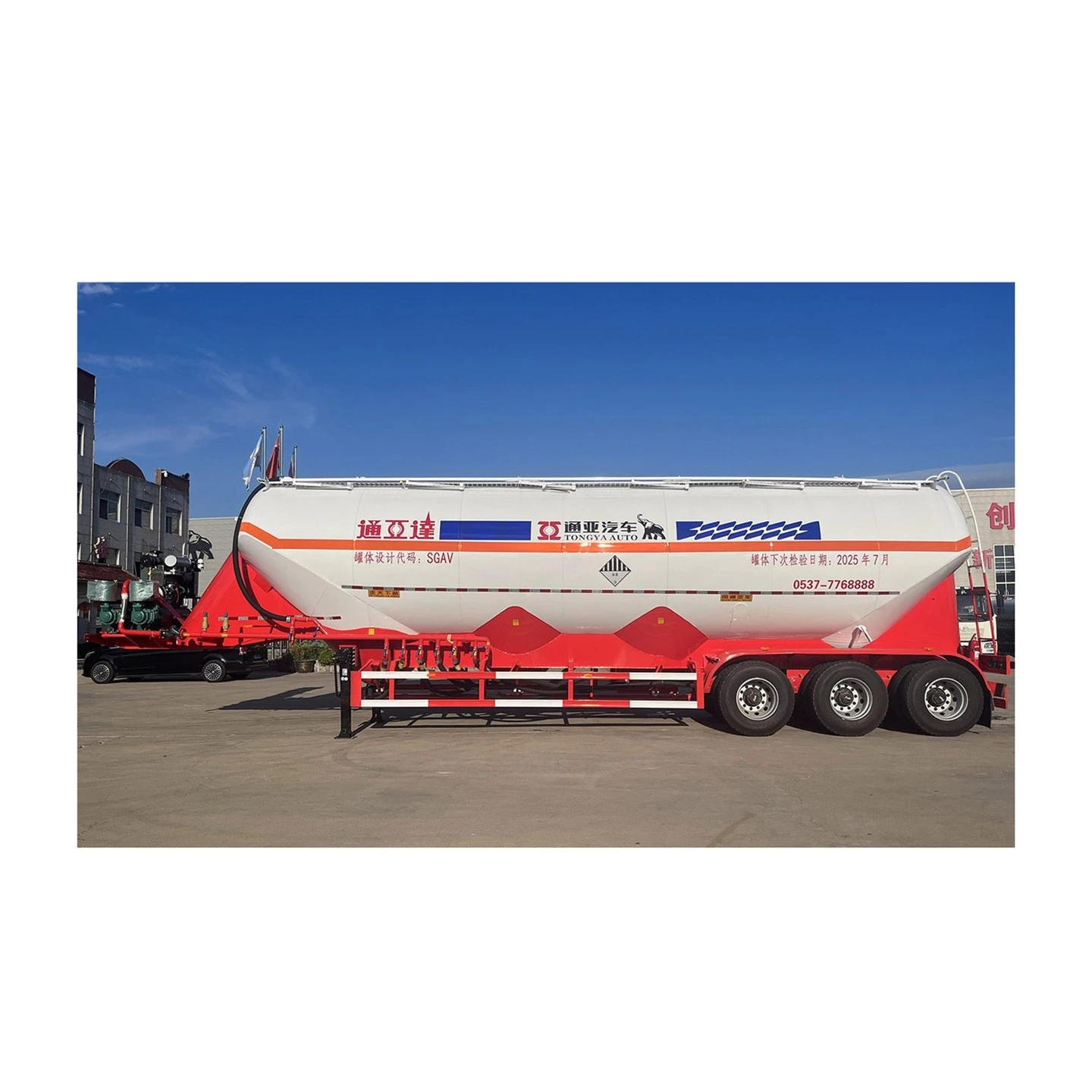

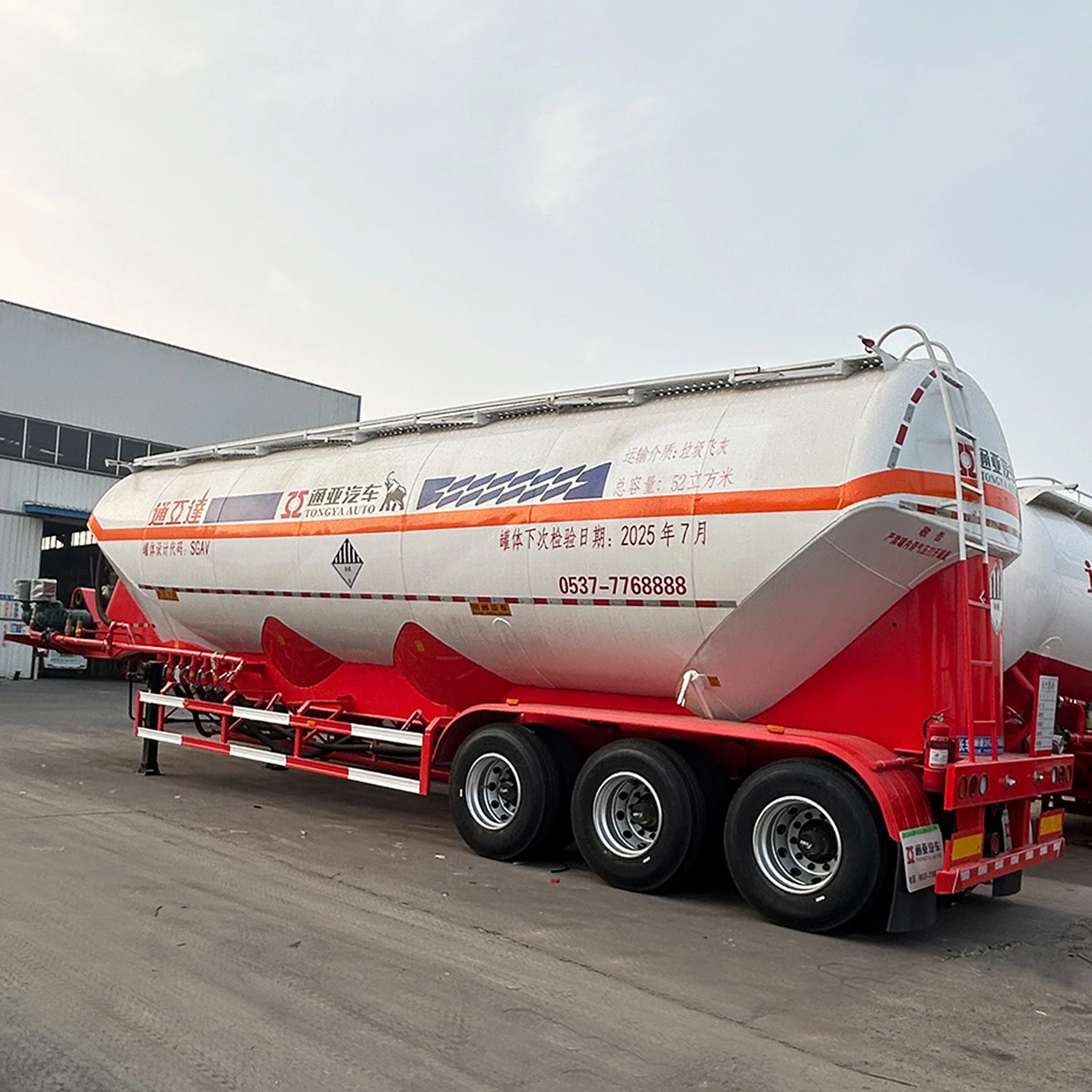

Powder Tanker Semi Trailer
1,Customization is acceptable for tanker capacity and style; 2,China leading manufacturer since 1982, top 1 sales in China market since 2012; 3,Engine and compressor is available, PTO via truck tractor optional ; 4,Fast discharging,<0.3% retention volume, 18 days delivery time.
Product Introduction
We Use 100% famous brand spare parts for our products, like JOST, WABCO, BPW, FUWA, Triangle for our trailer !
12 months warranty period is provided for our trailer , We accept 100% inspection, welcome to our factory at any time.
|
Weight: |
Tare Weight |
12T |
|
|
Loading capacity |
60 T |
|
|
Total weight |
72 T |
|
Dimensions: |
Dimension |
12000×2500*3800mm (The final dimensions depend on the final design drawings) |
|
|
Tanker capacity |
50m3 (50000L) |
|
Tanker body: |
Design/welding technology |
Heavy duty and extra durability designed; welding by automatic Submerged-Arc processes. |
|
|
Tanker body |
The tanker body made of 5mm, tanker ends made of 6mm thickness steel, Q235 steel |
|
|
Bottom chassis |
High strength Q345B steel |
|
|
Tanker shape |
"V" shape |
|
|
Silo |
4 silos |
|
|
Manhole: |
4 pieces, (Diameter is 500mm) |
|
|
Discharge mouth |
4 inch Discharge mouth |
|
|
Safety pressure valve |
Standard |
|
|
Discharge hose |
8m with Hose carries, the length is according to customer requirement |
|
|
Air compressor |
12m3 double cylinder Bohai brand |
|
|
Engine |
4102 Weichai engine |
|
|
Rear ladder and handrail |
Standard |
|
|
Retention volume |
<0.3% |
|
OEM parts: |
Axle |
3* 13 tons capacity, FUWA brand (Chinese best brand) |
|
|
King Pin |
2.00 /3.5 inch, bolting king pin, JOST brand |
|
|
Suspension |
Heavy duty suspension with equalizers, American design (high-strength type) |
|
|
Steel Spring |
Four sets of 10pcs leaf spring, 13mm thickness, 90mm width |
|
|
Landing legs |
JOST brand, manual operation landing legs with sand shoe |
|
|
Tire specs |
12R22.5 Triangle brand |
|
|
Rim |
9.0-22.5 |
|
|
Number of wheel |
9pieces(including one spare wheel) |
|
|
Brake system |
WABCO relay valve; Four double brake chamber; One unit of reliable local brand 45L air tank; Two units of reliable local brand standard coppery air-connector. |
|
|
ABS system |
Without(Can be choose freely,450 USD/set) |
|
|
Electrical: |
One unit of 24V 7-pin ISO 1185 socket; LED light (standard rear light, turn light, rear reflector, side light, side reflector etc.) |
|
Miscellaneous: |
Painting |
color advised by client |
|
|
Marking |
Standard |
|
|
Side Guard |
Standard |
|
|
spare wheel carrier |
Two set of heavy duty spare wheel carriers, including a riser. |
|
|
Tools box |
One piece (1. 0*0. 5*0. 5m) (equipped with 1 Tire spanner,1 gudgeon sleeve and 1 cranking bar) |
|
Note: All the details not mentioned will design as the final confirmation with the customer |
||
