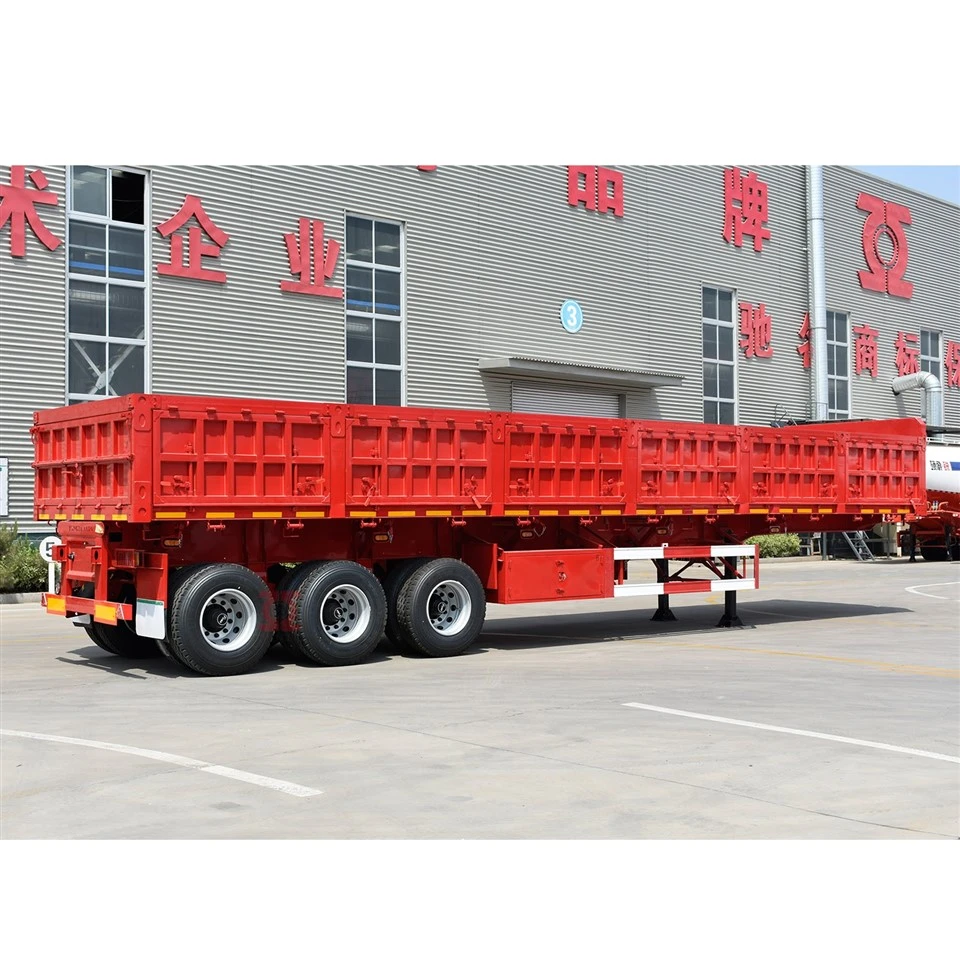

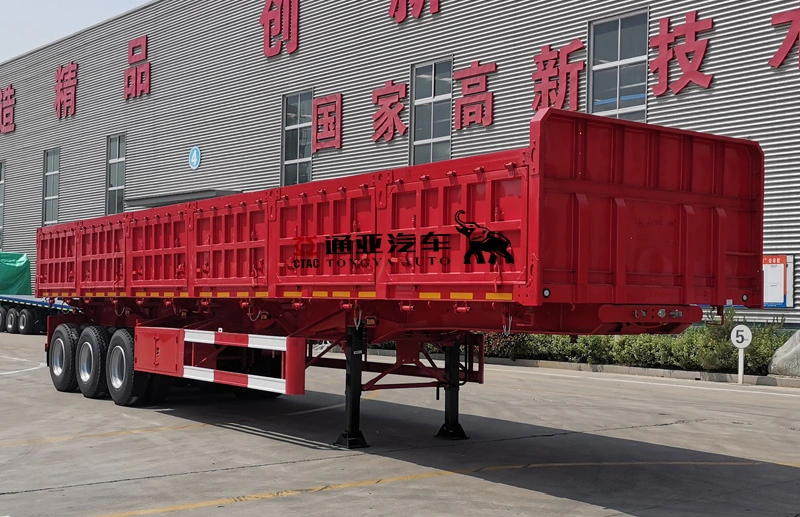

40T Side Dump Semi Trailer
Dump box dimensions , box thickness,hydraulic cylinder and optional accessories(two pieces spare tire carriers, water tank, fuel tank, etc.) are all cutomised by different cargo needs which build modern transportation.
Product Introduction
Products Description
40T Side Dump Semi Trailer of Advantages:
1,Working for mines or other large projects, mainly transport gravel, soil and coal,
2,Available for customization: including color and tire specifications, axles and dimension,
3,High efficiency: the side tipping semi-trailer is more efficiently for quick and easy loading and unloading of materials,
4,Excellent technology: the main components are processed by advanced equipment, the longitudinal beam is made by automatic submerged arc welding, and the assembly machine is used to accurately assemble the axle and leaf spring.
Products Description
| Specification | |
| Outside Dimension | 12500mm*2500mm*2500mm(the final dimension is according the final drawing picture) |
| Tare weight | About 9.3tons |
| Axle | 3 axles, TONGYADA brand 13tons per axles |
| Loading capacity | 40tons |
| Side wall thickness | 2mm |
| Bottom platform | 3mm smooth platform |
| Lifting system | E1104pcs + E1202pcs lifting cylinder, 1 shifting cylinder , PTO |
| Side beam | 16# channel steel |
| Main beam(q345) | Height: 500mm, upper plate is 14mm, middle is 8mm,down plate is 16mm |
| Landing gear | Jost A300C or standard 28 tons |
| King Pin | Jost 2.0 or 3.5 inch bolt-in type |
| Suspension | Mechanical suspension America type |
| Leaf spring | 90(W)mm*13(thickness)*10 Layer |
| Pneumatic Braking System | WABCO RE 6 relay valve; spring brake chamber; one piece of 45L air tanks |
| Rim | 9.0*22.5 brand can be optional 12pcs |
| Tire | 12R222.5 brand can be optional 12pcs |
| ABS | optional |
| Painting | Spray powder |
| Accessories | One standard tool box(equipped with 1 unit Tire spanner,1 unit gudgeon sleeve and 1 unit cranking bar)One spare tire carrier24 weld on winchRope hook |
Company Profile

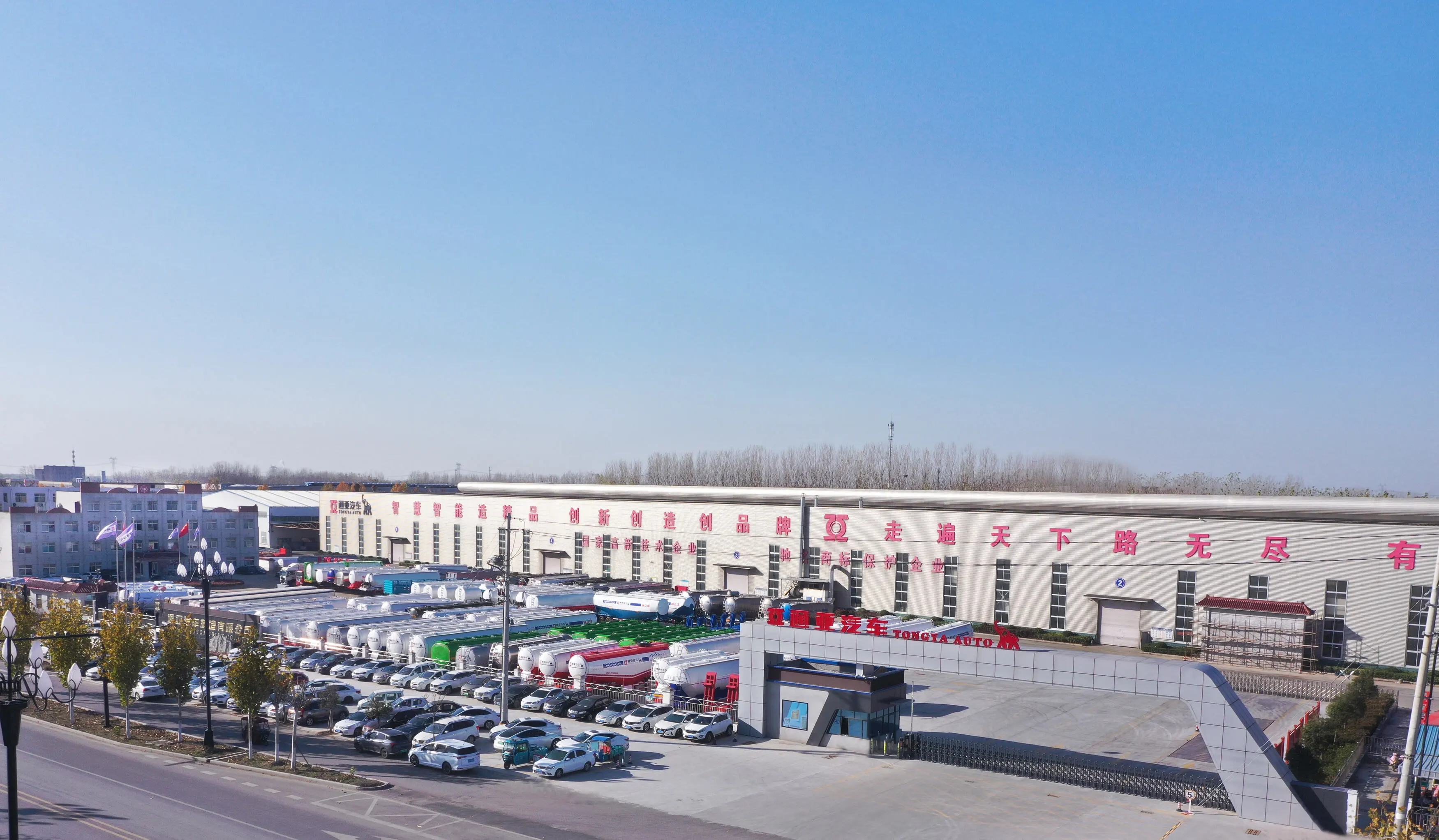

TONGYA AUTOMOBILE CO.,LTD is China leading semi trailer and tanker trailer manufacturer since 1982 ! Engaged design,manufacturing and sales of semi trailer and spare parts together.
Start export business since 2006, with a complete,professional and efficient export team. We start to send engineers, factory production supervisors, purchasing manager and sales to attend international exhibition since 2008, include IAA Transportation Fair in Hanover Germany, Mid-America trucking show in USA. Every Canton Fair and Bauma China.
