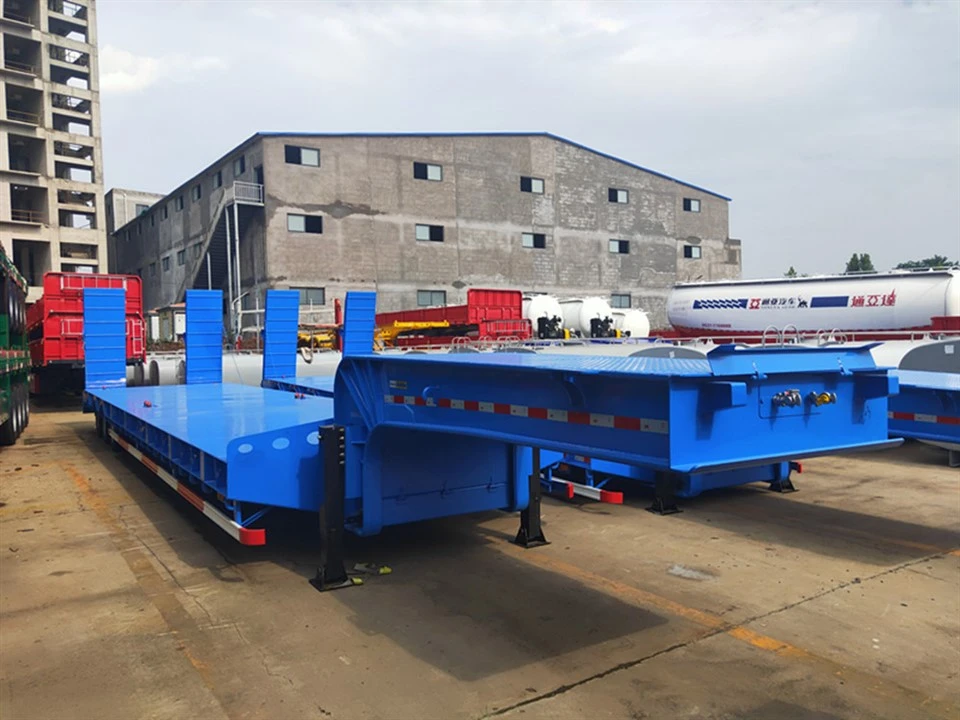

Custom-made Low Bed Semi Trailer
Currently, custom-made low bed semi trailer is very popular with customers, because it can be made totally according to customers’ requirements, the low bed semi trailer can be perfectly meet customers’ need. As the trailers can be used to transports many kinds of heavy machinery and equipment, such as excavator, road roller, crane, Wind turbine blade and so on.
Product Introduction
Product introduction
Low bed semi trailer is widely used in transporting heavy machinery and equipment.
The length and width can be custom-made can work in different road condition and weather condition
Capacity can be made according to customer’s requirement
Product description
Currently, custom-made low bed semi trailer is very popular with customers, because it can be made totally according to customers’ requirements, the low bed semi trailer can be perfectly meet customers’ need. As the trailers can be used to transports many kinds of heavy machinery and equipment, such as excavator, road roller, crane, Wind turbine blade and so on. Customer may just transport some of them, so we can design the low bed semi trailer according to the weight and dimension of the machinery and equipment. What’s more, design the low bed semi trailers also need to know the information of customer’s tractor, as the low bed semi trailer must be work with tractor, so we need to know the type of fifth wheel, is it 50# or 90#, what’s the height of fifth wheel, and the front turning radius and rear turning radius, thus can make sure the trailer can work well with tractor. So customers like custom-made low bed semi trailer very much.
Low bed semi trailer with extension board can be us
Specifications
|
Weight: |
Tare Weight |
13 T |
|
Loading capacity |
60 T |
|
|
Dimensions: |
Outside dimension |
15500*3000*1700 mm |
|
Frame: |
Design/welding technology |
Heavy duty and extra durability designed; |
|
Main beam |
Opting for high strength Q345B steel, |
|
|
Cross beam |
Heavy duty Special U steel |
|
|
Side beam |
20# channel steel, thickened type |
|
|
Floor |
5 mm thickness checkered plate |
|
|
Rear ladder (ramps) |
rear ramp |
|
|
OEM parts:
|
Axle |
3 *13T capacity, FUWA brand |
|
King Pin |
3.5’’ bolting king pin, JOST brand |
|
|
Suspension |
American design (high-strengthen type) |
|
|
Steel Spring |
10pcs leaf spring, 16mm thickness, 90mm width |
|
|
Landing legs |
JOST brand, manual operation landing legs with sand shoe |
|
|
Tire specs |
11.00R20, Triangle brand |
|
|
Rim |
8.0-20 |
|
|
Twist lock |
with |
|
|
Number of wheel |
13pieces(including one spare wheel) |
|
|
Brake system |
WABCO relay valve; |
|
|
Electrical: |
One unit of 24V 7-pin ISO 1185 socket; LED lights |
|
|
|
Painting |
color advised by client |
|
Marking |
Standard |
|
|
Side Guard |
Standard |
|
|
Spare Tire Carriers |
Two set of heavy duty spare wheel carriers |
|
|
Tools box |
One piece (1. 0*0. 5*0. 5m), under the goose neck(with necessary instruments inside) |

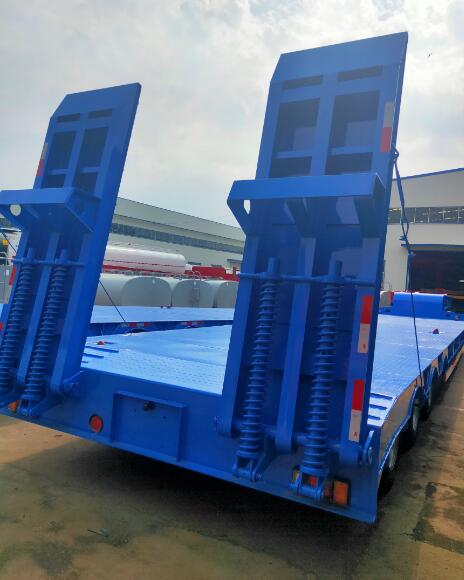

The rear ladder, heavy machinery can climb through these ladder by themselves
Twist lock, it enable this low bed semi trailer to transport 20ft and 40ft containers

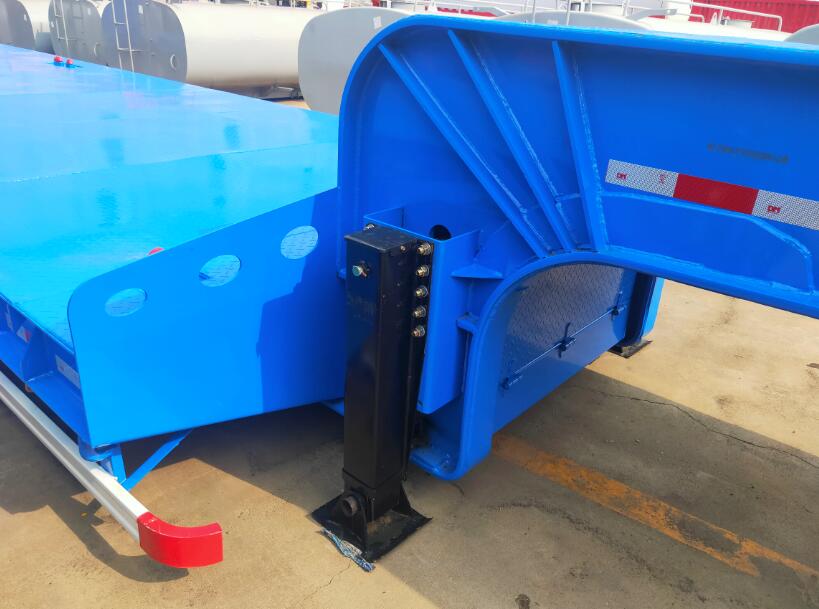

Landing gear, the world famous brand JOST
