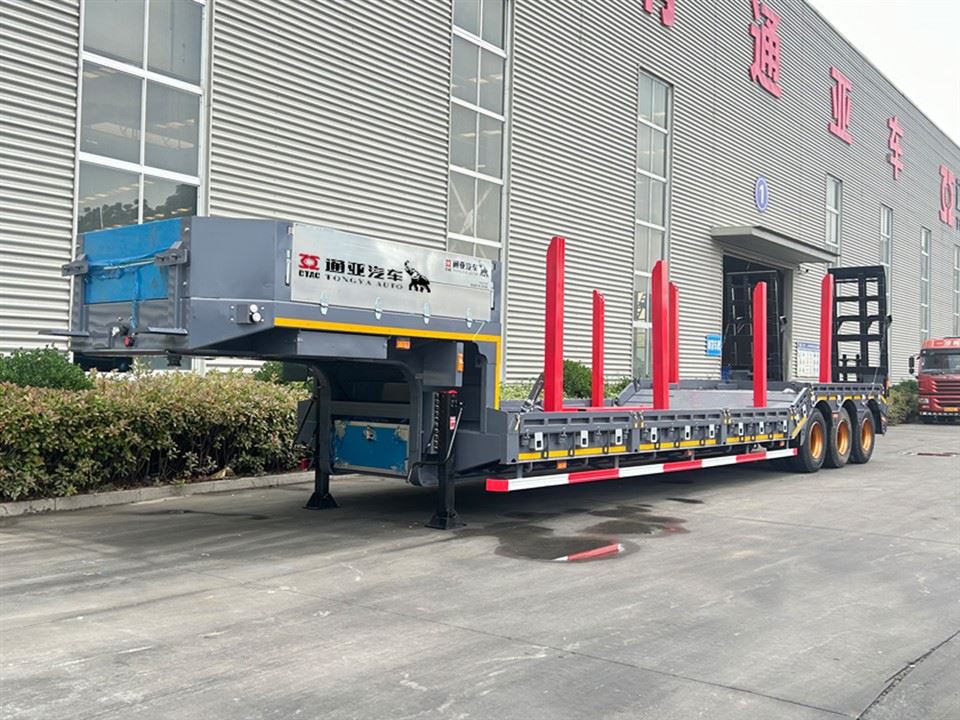

OTTC Certification Low Bed Semi Trailer With Mechanical Ladder
1, truck trailer for carry excavator, loader, bulldozer and other heavy machinery; 2, 40-80T loading capacity，size:13*3m, 820mm loading deck height;
Product Introduction
Products Description
OTTC Certification Low bed Semi Trailer with Mechanical Ladder of Advantages:
1, truck trailer for carry excavator, loader, bulldozer and other heavy machinery;
2, 40-80T loading capacity,size:13*3m, 820mm loading deck height;
3, customization is acceptable for ,loading capacity ,size and style;
4, China leading semi trailer manufacturer since 1982, export business start from 2006;
5, with more than 400 welders to make sure delivery on time.
Products Specification
| Weight: | Tare Weight | 11T |
| Loading capacity | 60 T | |
| Total weight | 71T | |
| Dimensions: | Outside dimension |
13000*3000*2950 mm (The final dimensions depend on the final design drawings) |
| Frame: | Main beam | Opting for high strength Q345B steel, 520mm deep welded I-section main beams Top Flange thickness 20mm, width 140mm; Bottom Flange thickness 20mm, width 140mm.Middle Flange thickness 12mm; |
| Cross beam | Heavy duty Special U steel | |
| Side beam | 250mm high I beam | |
| Floor | 5 mm thickness chequer plate | |
| Rear ladder (ramps) | Two pieces spring steel ladder, (Q345B steel) | |
| OEM parts: | Axle | 3 *13T capacity, FUWA brand (Chinese best brand) |
| King Pin | 2.00''/3.5'' bolting king pin, JOST brand | |
| Suspension | Heavy duty undermount suspension with equalizers, American design (high-strength type) | |
| Steel Spring | 10pcs leaf spring, 13mm thickness, 90mm width | |
| Landing legs | JOST brand, manual operation landing legs with sand shoe | |
| Tire specs | 315/80R22.5, Triangle brand (Chinese famous brand) | |
| Number of wheel | 13 pieces(including one spare wheel) | |
| Brake system | WABCO relay valve; Four double and two single brake chamber; Two units of ISO standard coppery air-connector. | |
| ABS system | Without(Can be choose freely,450 USD/set) | |
| Electrical: | One unit of 24V 7-pin ISO 1185 socket; LED lights | |
| Miscellaneous: | Painting | color advised by client |
| Marking | Standard | |
| Side Guard | Standard | |
| Spare Tire Carriers | Two set of heavy duty spare wheel carriers | |
| Tools box | One piece (1. 0*0. 5*0. 5m), under the goose neck(with 1 Tire spanner,1 gudgeon sleeve and 1 cranking bar) | |
| Note: All the details not mentioned will design as the final confirmation with the customer | ||
For more product details,please contact us.We will offer you the most compective pricing.
Company Profile

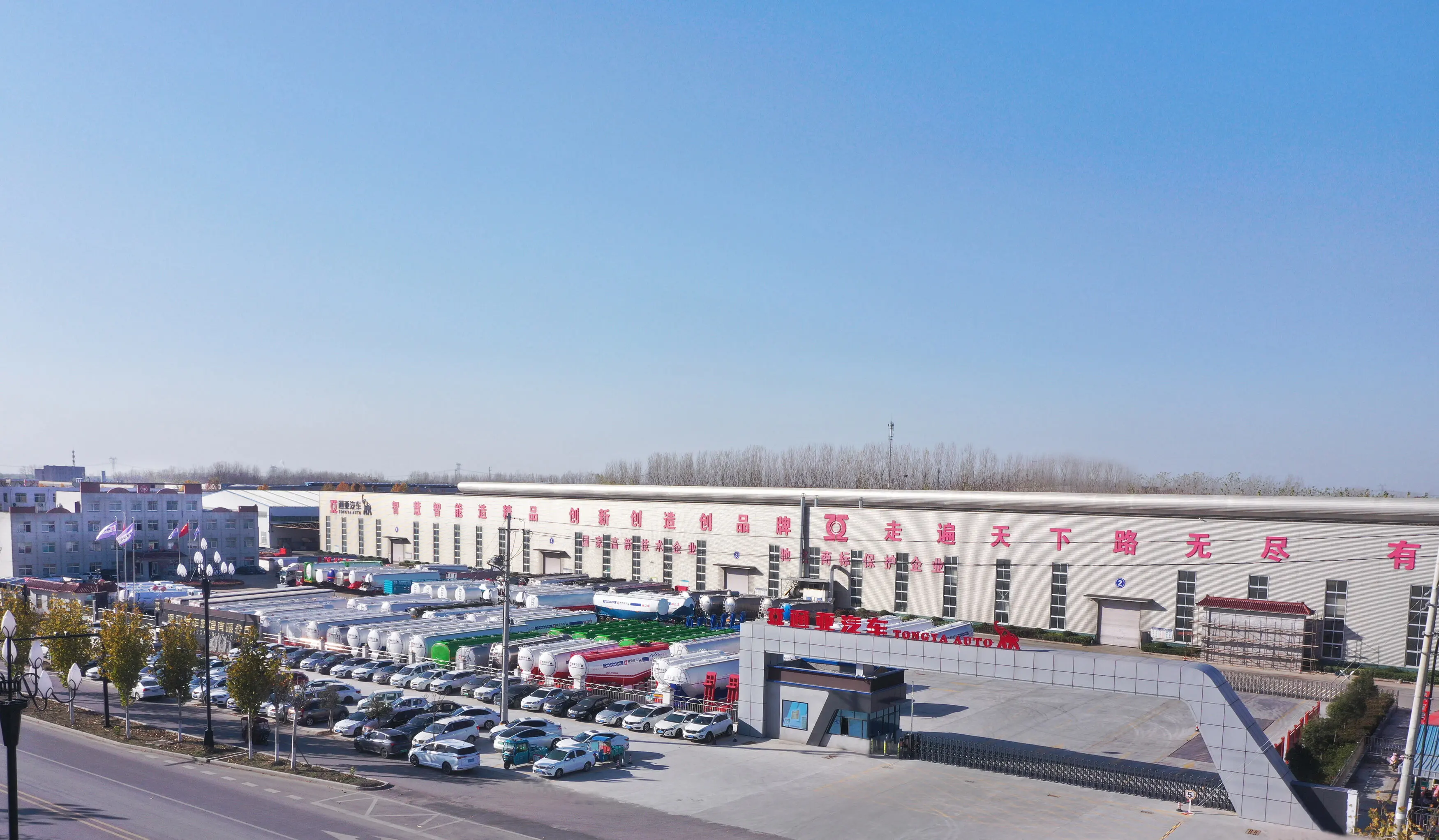

TONGYA AUTOMOBILE CO.,LTD is China leading semi trailer and tanker trailer manufacturer since 1982 ! Engaged design,manufacturing and sales of semi trailer and spare parts together.Our company covers an area of 400,000 square meters, total assets 7million US dollor. There are 156 persons with senior technical title. We have 1200 sets of first class fully automatic laser cutting machine, Automatic flat butt welding machine, Laser locating welding machine, fully automatic welding robot, tanker body inter and ourter automatic welding mechine, powder spray and baking varnish room, Switzerland four-wheel ATD-GPS and TEST EQUIPMENT which are advanced technology and Hi-Tech equipments.
