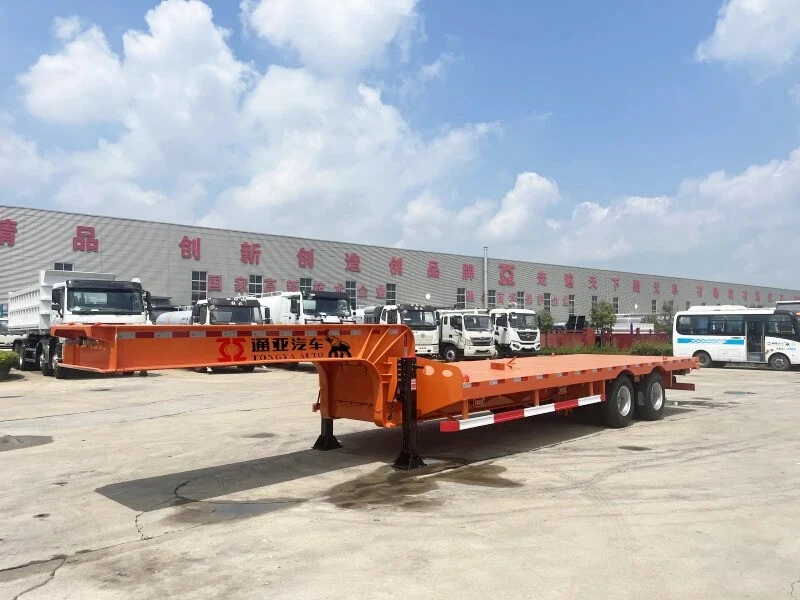

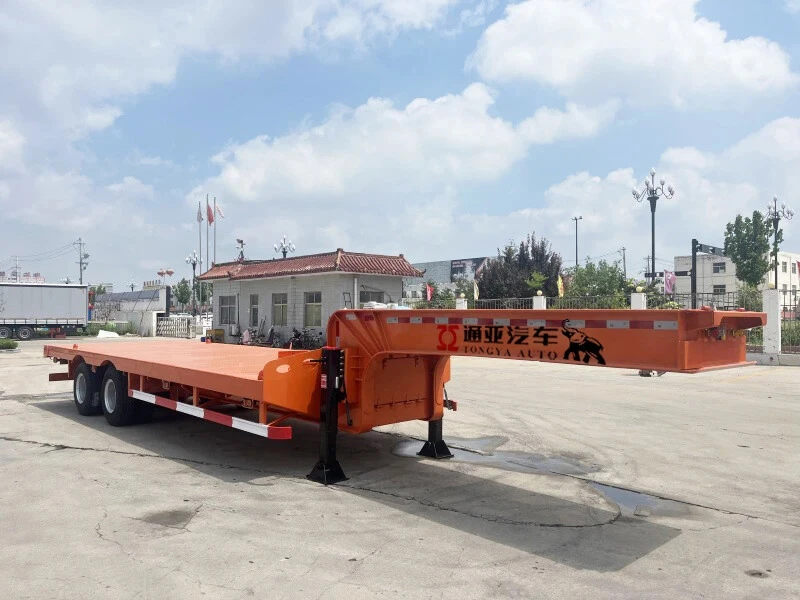

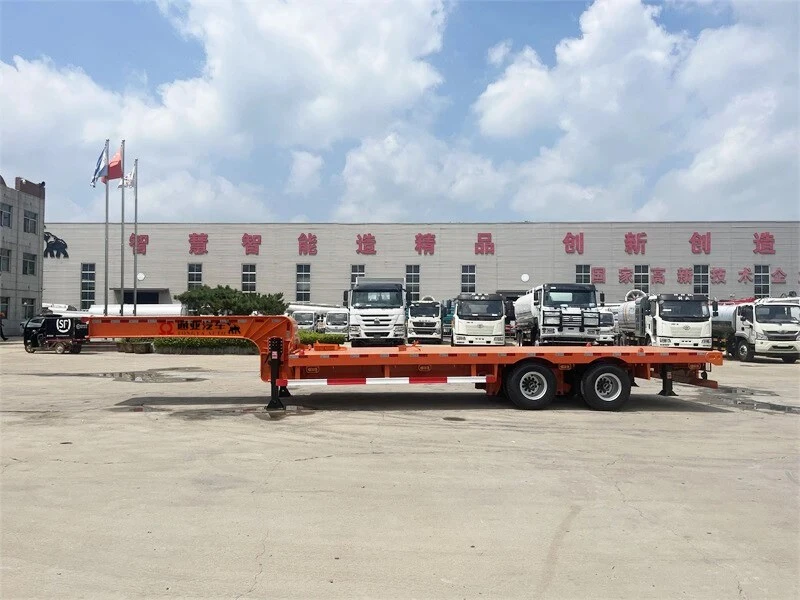

30T Low Bed Semi Trailer
1, Truck trailer for carry excavator, loader, bulldozer and other heavy machinery 2, 30T loading capacity，size:10*2.5m, 900mm loading deck height 3, Customization is acceptable for ,loading capacity ,size and style 4, China leading semi trailer manufacturer since 1982, export business start from 2006 5, With more than 400 welders to make sure delivery on time
Product Introduction
Products Description
30T Low Bed Semi Trailer of Advantages:
1, Truck trailer for carry excavator, loader, bulldozer and other heavy machinery
2, 30T loading capacity,size:10*2.5m, 900mm loading deck height
3, Customization is acceptable for ,loading capacity ,size and style
4, China leading semi trailer manufacturer since 1982, export business start from 2006
5, With more than 400 welders to make sure delivery on time
Products Specification
| Weight: | Tare Weight | 8T |
| Loading capacity | 30 T | |
| Total weight | 61.5 T | |
| Dimensions: | Outside dimension | 10000*2500*1550 mm (The final dimensions depend on the final design drawings) |
| Frame: | Design/welding technology | Heavy duty and extra durability designed;welding by automatic Submerged-Arc processes. |
| Main beam | Opting for high strength Q345B steel, 500mm deep welded I-section main beams Top Flange thickness 16mm, width 140mm; Bottom Flange thickness 18mm, width 140mm.Middle Flange thickness 10mm; | |
| Cross beam | Heavy duty Special U steel | |
| Side beam | 200mm high I beam | |
| Floor | 4 mm thickness chequer plate | |
| Rear ladder (ramps) | Without | |
| OEM parts: | Axle | 2 *11.5T capacity, FUWA brand (Chinese best brand) |
| King Pin | 2.00''/3.5'' bolting king pin, JOST brand | |
| Suspension | Heavy duty undermount suspension with equalizers, American design (high-strength type) | |
| Steel Spring | 10pcs leaf spring, 13mm thickness, 90mm width | |
| Landing legs | JOST brand, manual operation landing legs with sand shoe | |
| Tire specs | 8.25R15, Triangle brand (Chinese famous brand) | |
| Rim | 6.5(Chinese famous brand) | |
| Number of wheel | 9pieces(including one spare wheel) | |
| Brake system | WABCO relay valve; Four double and two single brake chamber; Two units of ISO standard coppery air-connector. | |
| ABS system | Without(Can be choose freely,450 USD/set) | |
| Electrical: | One unit of 24V 7-pin ISO 1185 socket; LED lights | |
| Miscellaneous: | Painting | color advised by client |
| Marking | Standard | |
| Side Guard | Standard | |
| Spare Tire Carriers | Two set of heavy duty spare wheel carriers | |
| Tools box | One piece (1. 0*0. 5*0. 5m), under the goose neck(with 1 Tire spanner,1 gudgeon sleeve and 1 cranking bar) | |
| Note: All the details not mentioned will design as the final confirmation with the customer | ||
For more products details,please contact us. We will offer you the most compective pricing.
Products Description

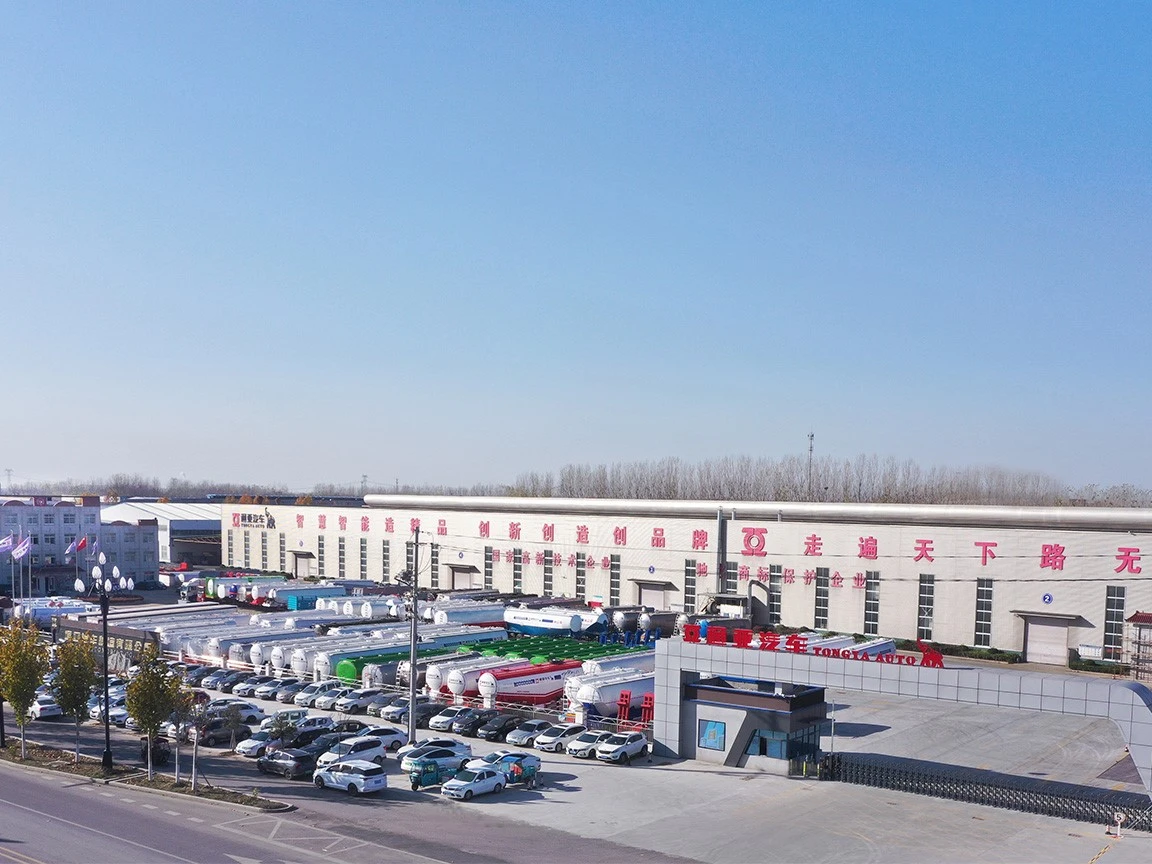

TONGYA AUTOMOBILE CO.,LTD is China leading semi trailer and tanker trailer manufacturer since 1982 ! Engaged design,manufacturing and sales of semi trailer and spare parts together.

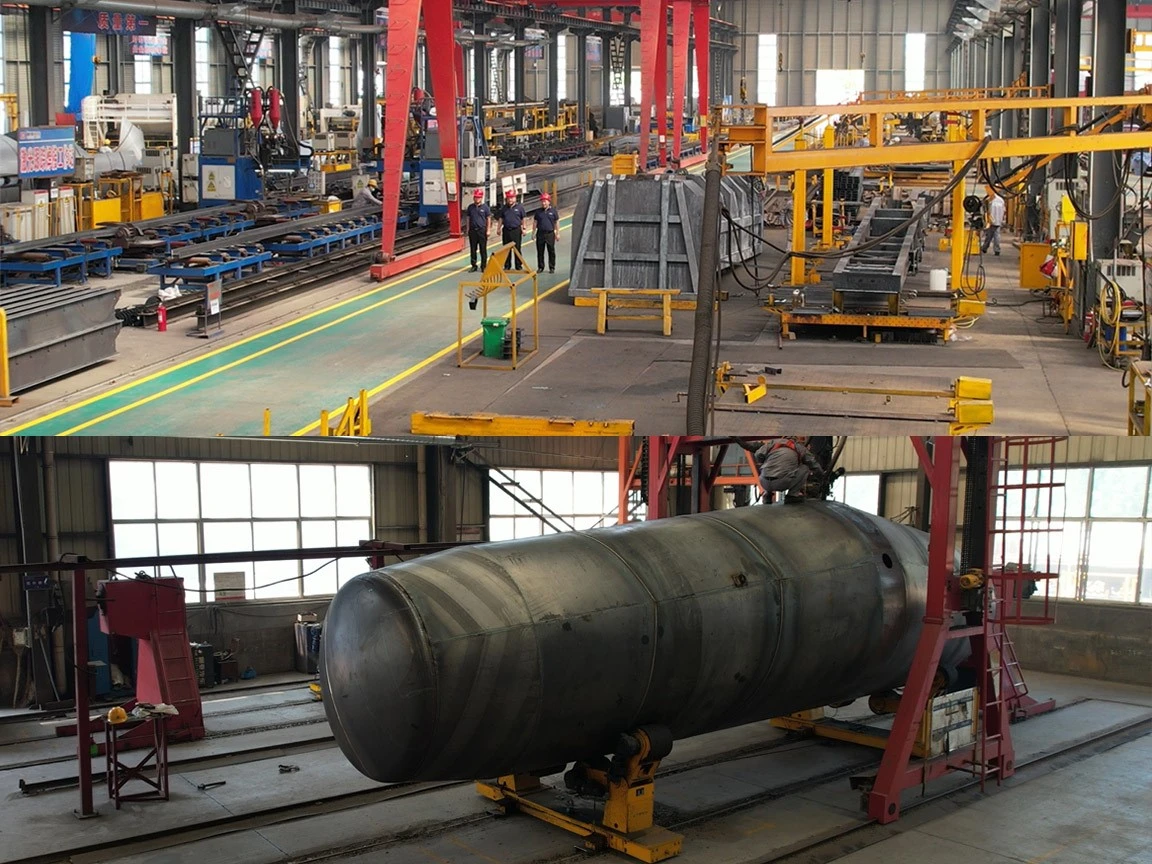

Start export business since 2006, with a complete,professional and efficient export team. We start to send engineers, factory production supervisors, purchasing manager and sales to attend international exhibition since 2008, include IAA Transportation Fair in Hanover Germany, Mid-America trucking show in USA. Every Canton Fair and Bauma China.
Hot Tags: 30t low bed semi trailer, China 30t low bed semi trailer manufacturers, suppliers, 18 wheeler flatbed trailer, custom water tanks for trucks, fuel tank with trailer, horse and trailer trucks, reliable aluminum trailers, trailer with side walls
